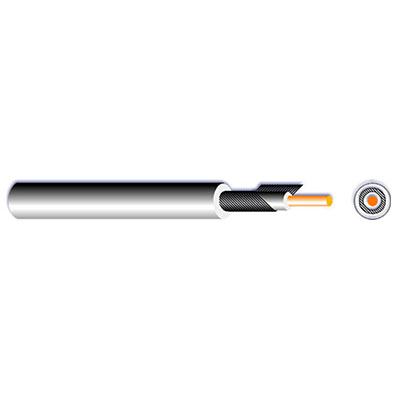

AVX,AVFX,HEBX
AVX,AVFX,HEBX
PRODUCT DESCRIPTION
1.Rated temperature:100ºC
2.Rated voltage:60V DC & 25V AC
3.According to:JISO D 611
4.Solid or Stranded,tinned or bare copper conductor 0.5mm2-8mm2
5.Material:XLPVC insulation
6.Uniform insulation thickness of wire to ensure easy stripping and cutting.
7.Environmental testing pass RoHS
8.Use for car electric equipment internal wiring.
PRODUCT PARAMETERS
| 型号 | 导体线规(mm2) | 导体结构 | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | |
| 根数 | 线径/mm | ||||||
| TYPE | Wire Type (mm2) | Wire core qty | Wire diameter | Conductor outer diameter | Insulation thickness | Wire O.D | Max Cond. resistance |
| AVXAVFX HEBX | 0.5f | 20 | 0.180 | 1.00 | 0.5 | 2.00 | 36.7 |
| 0.5 | 7 | 0.320 | 1.00 | 2.00 | 32.7 | ||
| 0.75f | 30 | 0.180 | 1.20 | 2.20 | 24.4 | ||
| 0.85 | 11 | 0.320 | 1.20 | 2.30 | 20.8 | ||
| 1.25f | 50 | 0.180 | 1.50 | 0.6 | 2.70 | 14.7 | |
| 1.25 | 16 | 0.320 | 1.50 | 2.70 | 14.3 | ||
| 2f | 37 | 0.260 | 1.80 | 3.10 | 9.5 | ||
| 2 | 26 | 0.320 | 1.90 | 3.10 | 8.81 | ||
| 3 | 41 | 0.320 | 2.40 | 0.7 | 3.80 | 5.59 | |
| 5f | 98 | 0.260 | 3.00 | 0.8 | 4.70 | 3.59 | |
| 5 | 65 | 0.320 | 3.00 | 4.70 | 3.52 | ||
| 8 | 50 | 0.450 | 3.70 | 5.60 | 2.52 | ||
| 8f | 154 | 0.260 | 4.00 | 5.60 | 2.33 | ||
