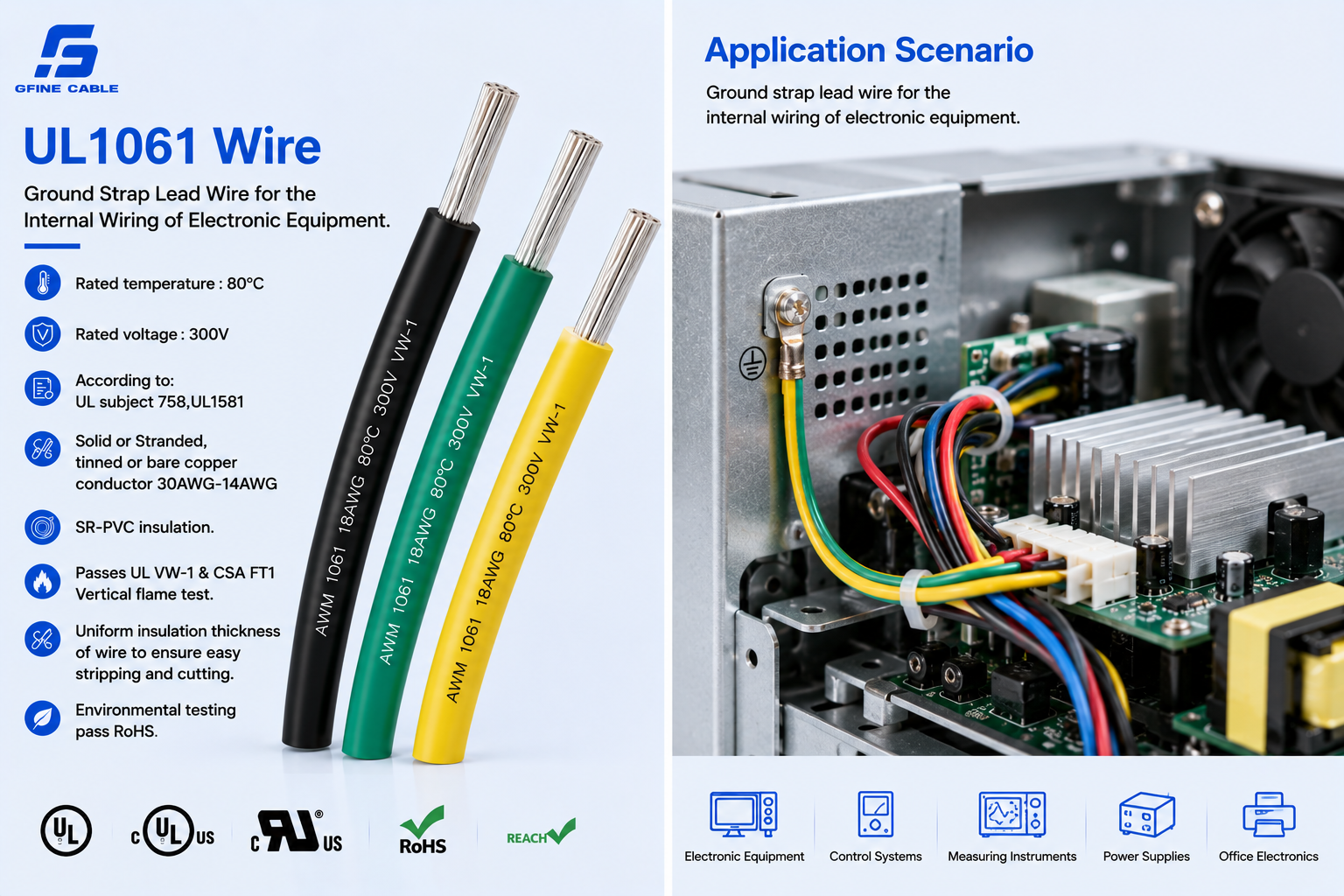

UL1061 HOOK UP WIRE
UL1061 HOOK UP WIRE
PRODUCTS DESCRIPTION
1. Rated temperature:80ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30AWG-14AWG
5.SR-PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test.
7.Uniform insulation thickness of wire to ensure easy stripping and cutting.
8.Environmental testing pass RoHS.
9.Ground strap lead wire for the internal wiring of electronic equipment.
| UL 型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter | Insulation thickness | Wire O.D | Max Cond. resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL1061 | 30 | 7/0.1 | 0.30 | 0.23 | 0.8 | 381 | 4000 | 1220 |
| 28 | 7/0.127 | 0.38 | 0.85 | 239 | ||||
| 26 | 7/0.16 | 0.48 | 1 | 150 | ||||
| 24 | 11/0.16 | 0.61 | 1.1 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.3 | 59.4 | 2000 | 610 | ||
| 20 | 21/0.178 | 0.94 | 1.5 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 1.8 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 2.1 | 14.6 | ||||
| 14 | 41/0.254 | 1.49 | 2.5 | 8.96 | ||||
