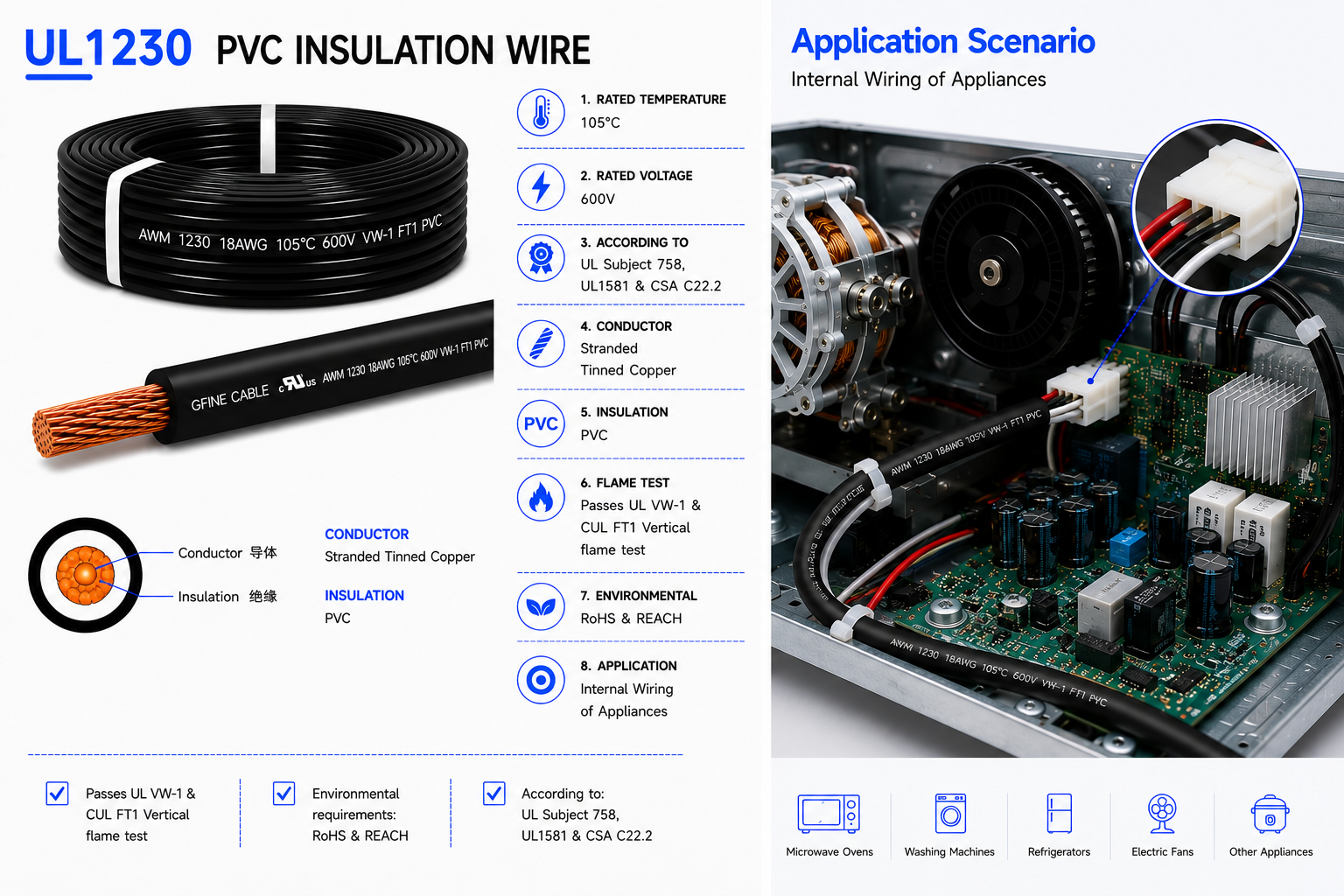

UL1230 PVC insulated wire
UL1230 PVC insulated wire
PRODUCT DESCRIPTION
Rated temperature ：105℃
Rated voltage ：600V
Reference standard：UL Subject 758, UL1581 & CSA C22.2
Conductor: stranded tinned copper
Insulation: PVC
Passes UL VW-1 & CUL FT1 vertical flame test
Environmental requirements: RoHS & REACH;
Internal Wiring of Appliances
PARAMETER
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 8 | 168/0.254 | 4.10 | 0.76 | 5.80 | 2.23 | |
| 10 | 105/0.254 | 3.01 | 0.76 | 4.70 | 3.546 | |
| 12 | 65/0.254 | 2.37 | 0.76 | 4.00 | 5.64 | |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.60 | 8.96 | |
| 16 | 26/0.254 | 1.50 | 0.76 | 3.20 | 14.6 | |
