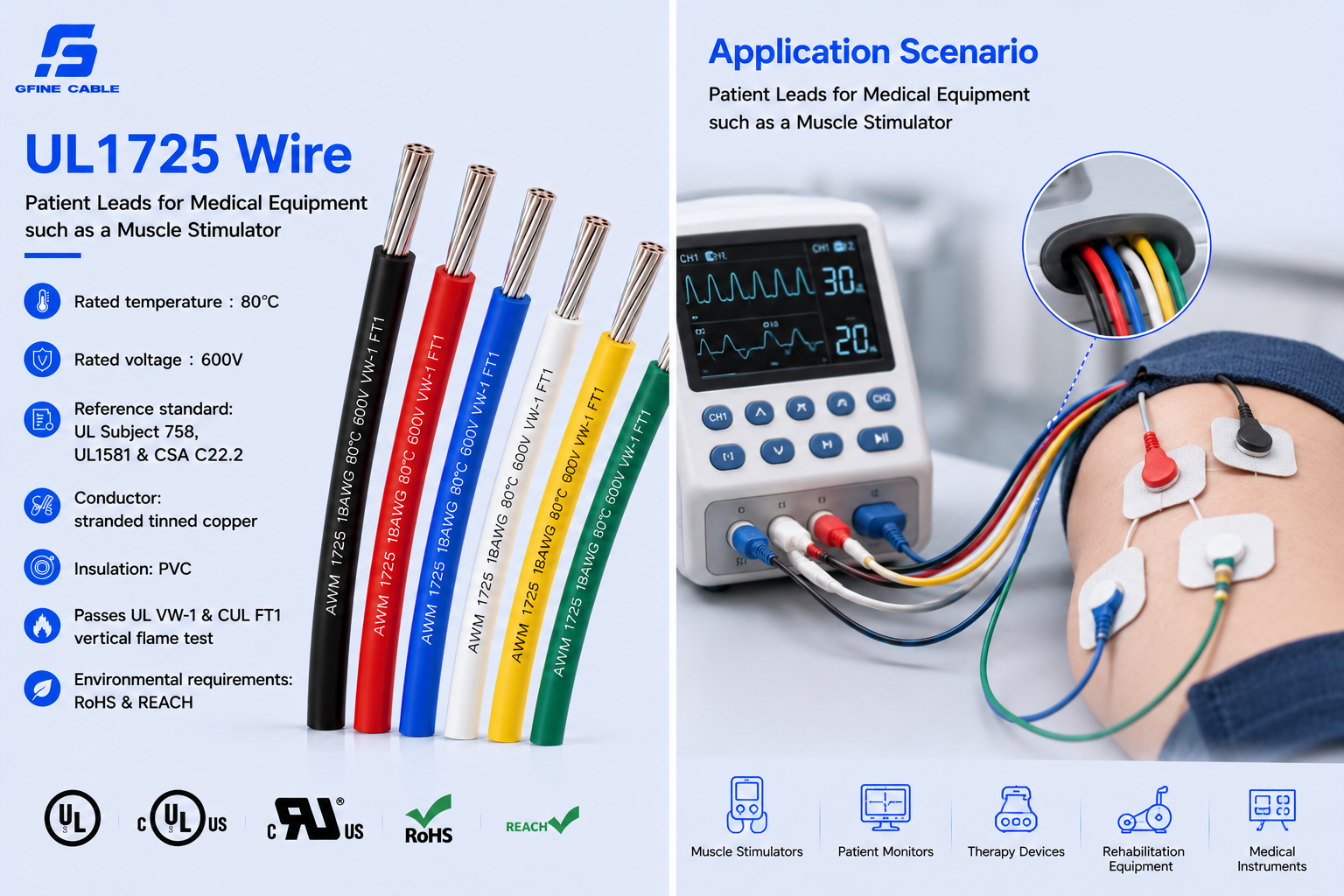

UL1725 PVC insulated wire
UL1725 PVC insulated wire
PRODUCT DESCRIPTION
Rated temperature ：80℃
Rated voltage：600V
Reference standard：UL Subject 758, UL1581 & CSA C22.2
Conductor: stranded tinned copper
Insulation: PVC
Passes UL VW-1 & CUL FT1 vertical flame test
Environmental requirements: RoHS & REACH;
Patient Leads for Medical Equipment such as a Muscle Stimulator
PARAMETER
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 16 | 26/0.254 | 1.50 | 1.125 | 4.00 | 14.6 | |
| 18 | 41/0.16 | 1.18 | 1.125 | 3.70 | 23.2 | |
| 20 | 26/0.16 | 0.94 | 1.125 | 3.40 | 36.7 | |
| 22 | 17/0.16 | 0.76 | 1.125 | 3.30 | 59.4 | |
| 24 | 11/0.16 | 0.61 | 1.125 | 3.10 | 94.2 | |
| 26 | 7/0.16 | 0.48 | 1.125 | 3.00 | 150 | |
