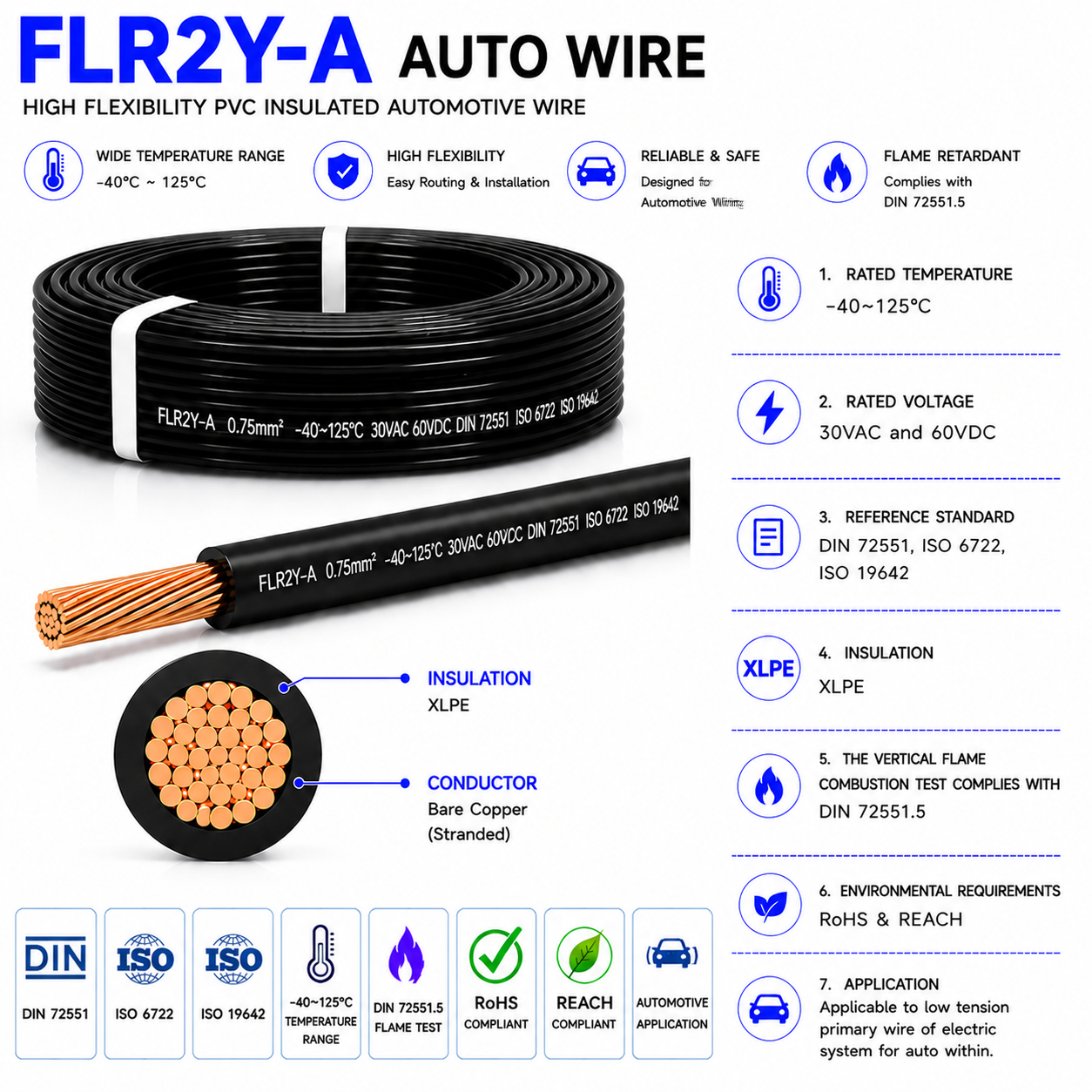

FLR2X-A low-voltage cables for automobiles

Product Detail

PRODUCT DESCRIPTION

Rated temperature：-40～125℃

Rated voltage：30VAC and 60VDC

Reference standard：DIN 72551, ISO 6722, ISO 19642

Insulation: XLPE

The vertical flame combustion test complies with：:DIN 72551.5

Environmental requirements: RoHS & REACH;

Applicable to low tension primary wire of electric system for auto within.

PARAMETER

Conductor 导体			Insulation 绝缘		Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km
Conductor 导体			Insulation 绝缘
mm² 截面	No./mm 线数/最大线径	Nom.Dia. 外径 mm	Min.Thick 最小厚度 mm	Maximum outer diameter 最大外径 mm


0.22	7/0.21	0.70	0.20	1.20	84.8
0.35	7/0.27	0.80	0.20	1.40	54.4
0.50	19/0.19	0.92	0.22	1.60	37.1
0.75	19/0.24	1.14	0.24	1.90	24.7
1.00	19/0.27	1.31	0.24	2.10	18.5
1.50	19/0.33	1.58	0.24	2.40	12.7
2.50	37/0.28	1.83	0.28	3.00	7.60
