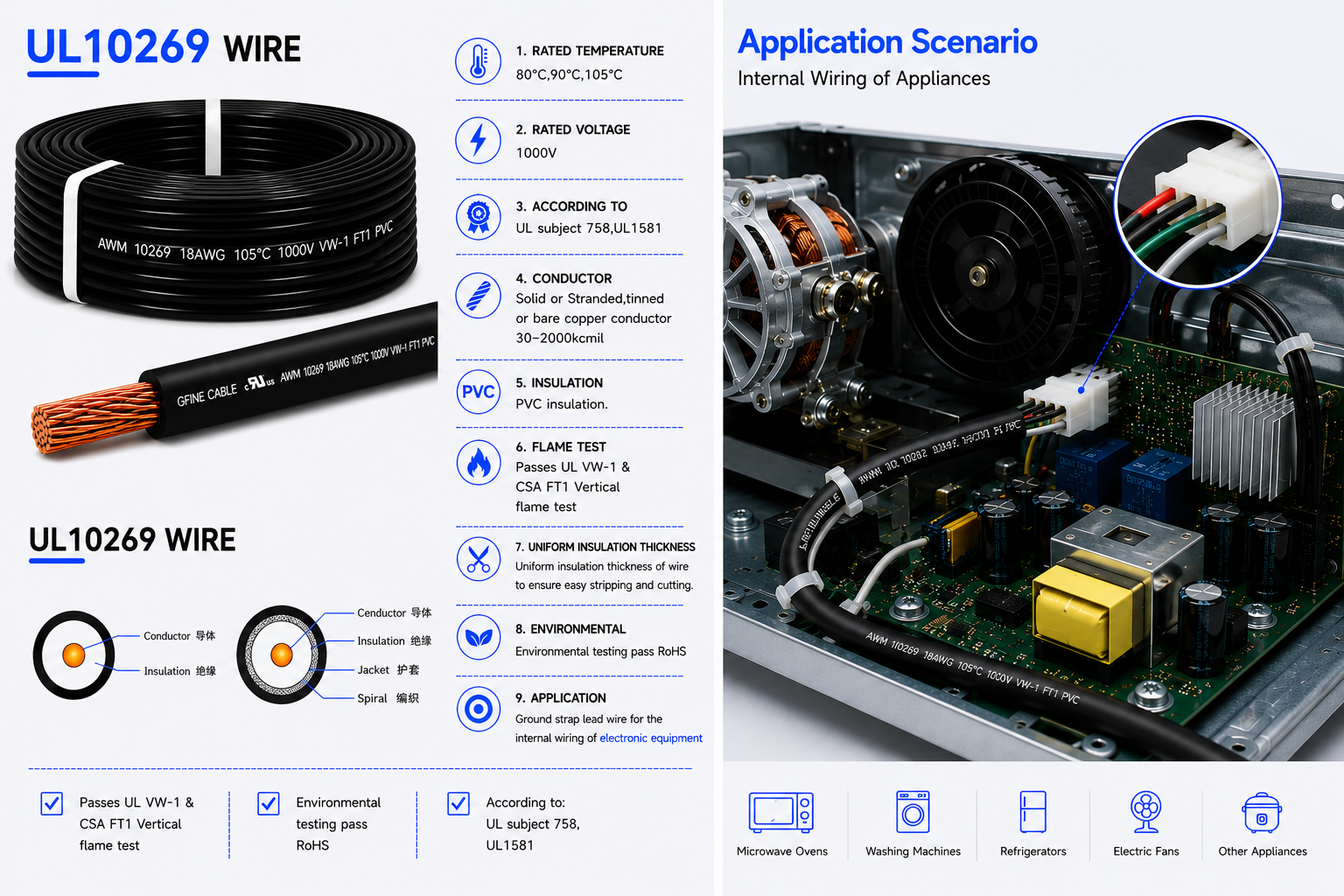

UL10269 HOOK UP WIRE

Short Description:

80ºC,90ºC,105ºC 1000V PVC INSULATION WIRE.

Rated temperature:80ºC,90ºC,105ºC
Rated voltage:1000V
According to:UL subject 758,UL1581
Solid or Stranded,tinned or bare copper conductor 30-2000kcmil
PVC insulation.
Passes UL VW-1 & CSA FT1 Vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting.
Environmental testing pass RoHS
Ground strap lead wire for the internal wiring of electronic equipment

Send email to us

Product Detail

Product Tags

PRODUCTS DESCRIPTION

1. Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:1000V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-2000kcmil
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Uniform insulation thickness of wire to ensure easy stripping and cutting.
8.Environmental testing pass RoHS
9.Ground strap lead wire for the internal wiring of electronic equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准长度
UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter	Insulation thickness	Wire O.D	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL10269	26	7/0.16	0.48	0.76	2.1	150	2000	610
	24	11/0.16	0.61		2.2	94.2
	22	17/0.16	0.76		2.4	59.4
	20	21/0.178	0.94		2.6	36.7
	18	63/0.127	1.17		2.8	23.2
	16	105/0.127	1.49		3.1	14.6	1000	305
	14	168/0.127	1.87		3.50	8.96
	12	259/0.127	2.36		4.10	5.64
	10	413/0.127	3.00		4.70	3.546
	8	658/0.127	3.80	1.14	6.50	2.23	492	150
	6	1029/0.127	4.80	1.52	8.40	1.403	328	100
	4	1638/0.127	6.00		9.50	0.882	328	100
	2	2604/0.127	7.70		11.50	0.5548	/	REEL
	1	3283/0.127	8.50	2.03	13.90	0.4398
	1/0	4137/0.127	9.60		14.80	0.3487
	2/0	5225/0.127	10.80		16.00	0.2766
	3/0	6574/0.127	12.20		17.50	0.2194
	4/0	8284/0.127	13.80		19.50	0.1722
