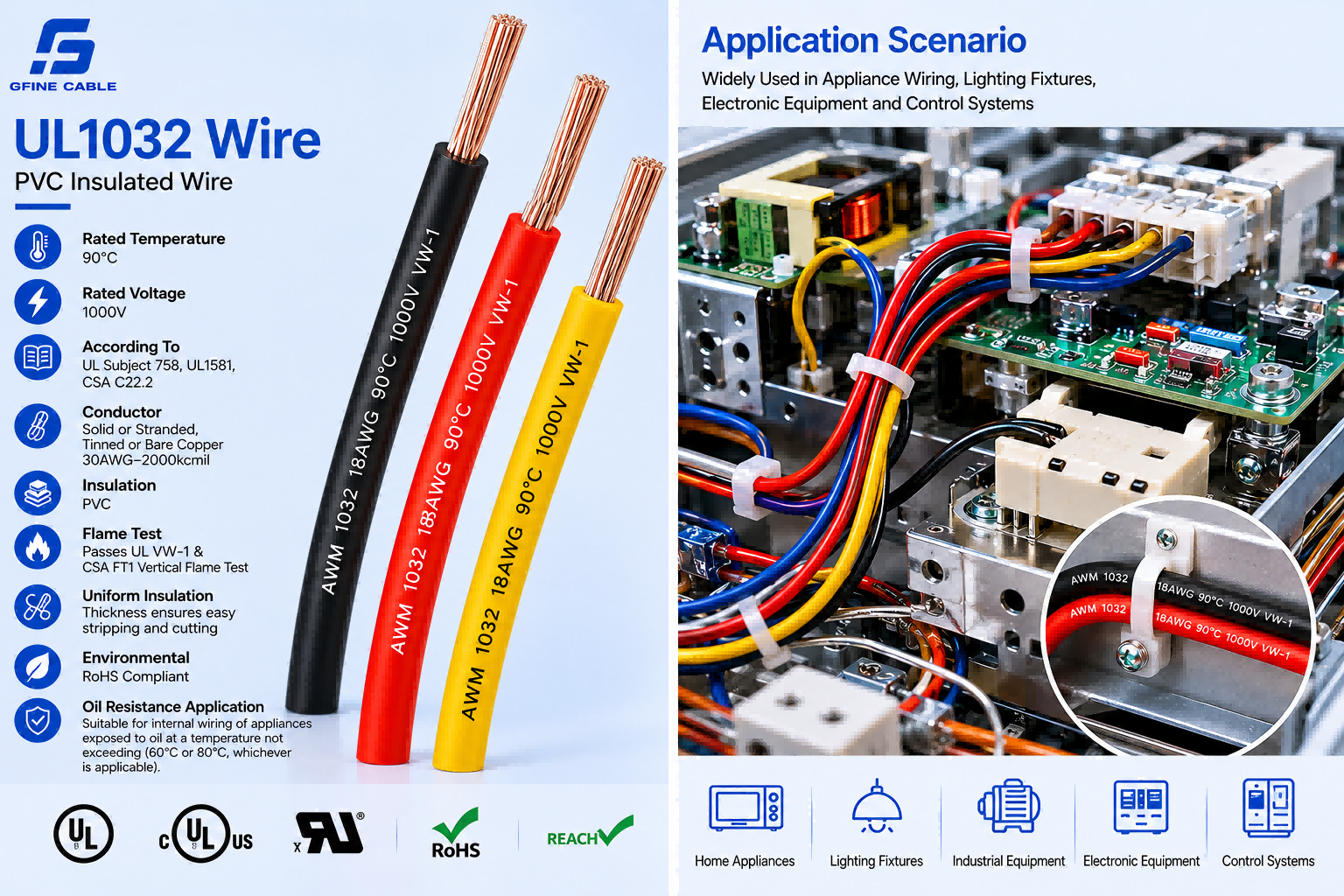

PRODUCT DESCRIPTION
1.Rated temperature:90ºC
2.Rated voltage:1000V
3.According to:UL subject 758,UL1581,CSA C22.2
4.Solid or Stranded,tinned or bare copper conductor30AWG-2000kcmil
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Uniform insulation thickness of wire to ensure easy stripping and cutting.
8.Environmental testing pass RoHS
9.The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).
PRODUCT PARAMETERS
| UL 型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond. resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL1032 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 2.20 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 2.40 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.60 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.80 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 3.10 | 14.6 | 1000 | 305 | ||
| 14 | 41/0.254 | 1.87 | 3.50 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.00 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.70 | 3.546 | ||||
| 8 | 164/0.254 | 3.80 | 1.14 | 6.50 | 2.23 | 492 | 150 | |
| 6 | 260/0.254 | 4.80 | 1.52 | 8.40 | 1.403 | 328 | 100 | |
| 4 | 412/0.254 | 6.00 | 9.50 | 0.882 | ||||
| 2 | 665/0.254 | 7.70 | 11.50 | 0.5548 | / | REEL | ||
| 1 | 820/0.254 | 8.50 | 2.03 | 13.90 | 0.4398 | |||
| 1/0 | 1035/0.254 | 9.60 | 14.80 | 0.3487 | ||||
| 2/0 | 1311/0.254 | 10.80 | 16.00 | 0.2766 | ||||
| 3/0 | 1650/0.254 | 12.20 | 17.50 | 0.2194 | ||||
| 4/0 | 2090/0.254 | 13.80 | 19.50 | 0.1722 | ||||
