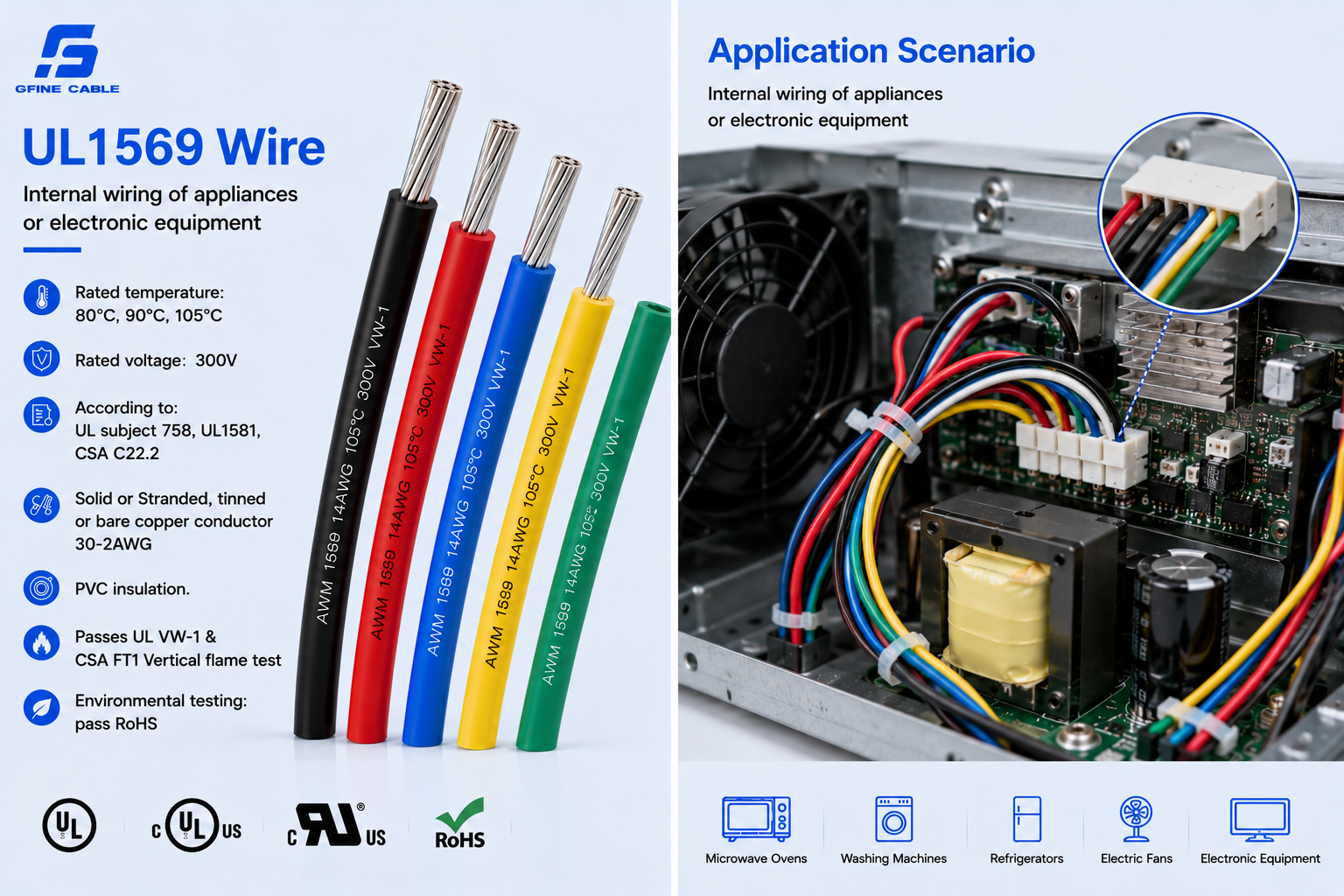

UL1569 HOOK UP WIRE
UL1569 HOOK UP WIRE
PRODUCT DESCRIPTION
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581,CSA C22.2
4.Solid or Stranded,tinned or bare copper conductor 30-2AWG
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Uniform insulation thickness of wire to ensure easy stripping and cutting.
8.Environmental testing： pass RoHS
9.Internal wiring of appliances or electronic equipment
PRODUCT PARAMETERS
| UL 型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness(mm) | Wire O.D(mm) | Max Cond. resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL1569 | 26 | 7/0.16 | 0.48 | 0.38 | 1.30 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 1.40 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.60 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 1.80 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.00 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 2.35 | 14.6 | ||||
| 14 | 41/0.254 | 1.87 | 2.75 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 3.25 | 5.64 | 1000 | 305 | ||
| 10 | 105/0.254 | 3.00 | 3.90 | 3.546 | ||||
| 8 | 164/0.254 | 3.80 | 0.76 | 5.90 | 2.23 | 490 | 150 | |
| 6 | 260/0.254 | 4.80 | 6.90 | 1.403 | ||||
| 4 | 412/0.254 | 6.00 | 8.40 | 0.882 | 328 | 100 | ||
| 2 | 665/0.254 | 7.70 | 10.50 | 0.5548 | ||||
