UL1015 PVC Insulated Hook-Up Wire 600V 105°C Flexible Copper Electronic Cable

UL1015 PVC Insulated Hook-Up Wire 600V 105°C Flexible Copper Electronic Cable

UL1015 PVC Insulated Hook-Up Wire 600V 105°C Flexible Copper Electronic Cable

Short Description:

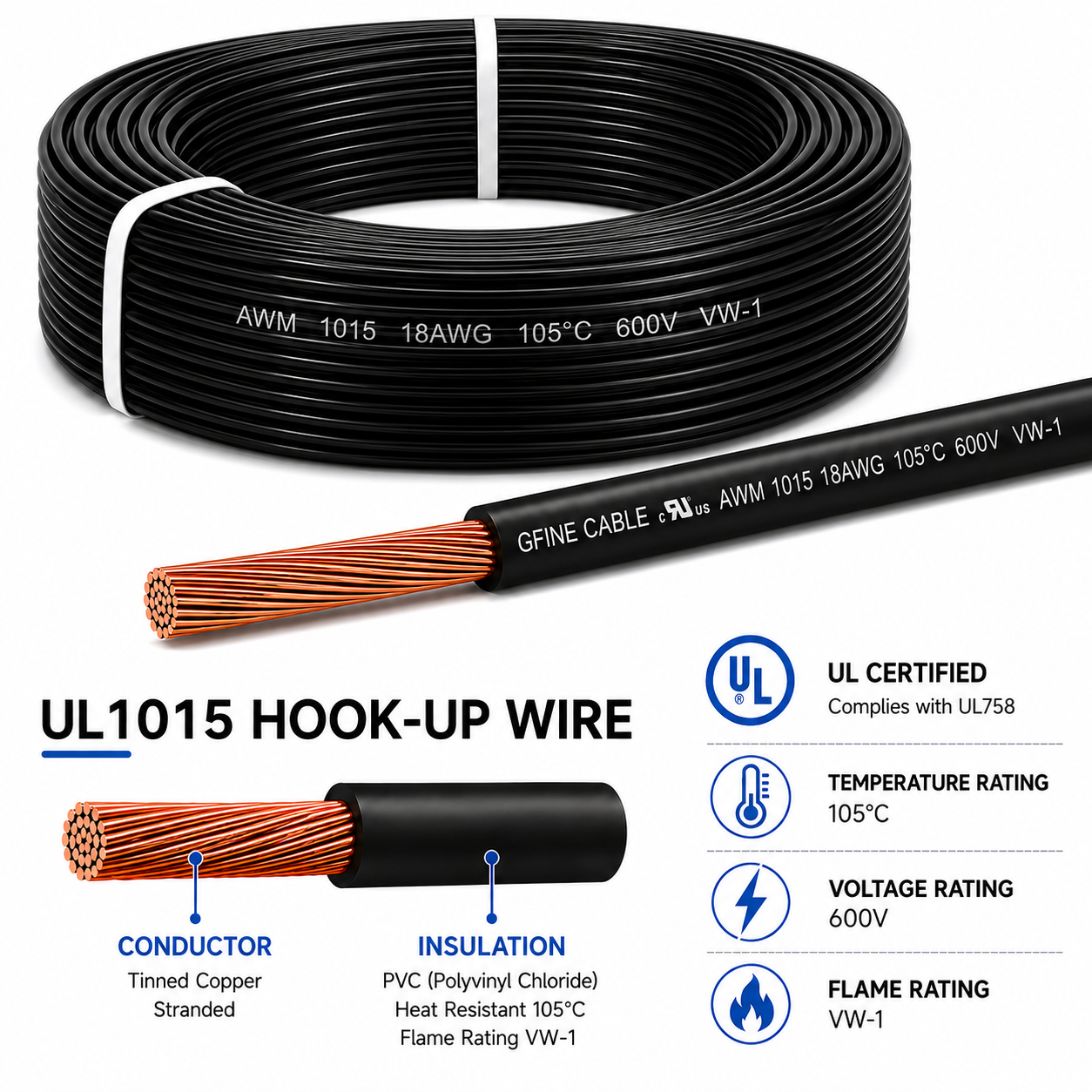

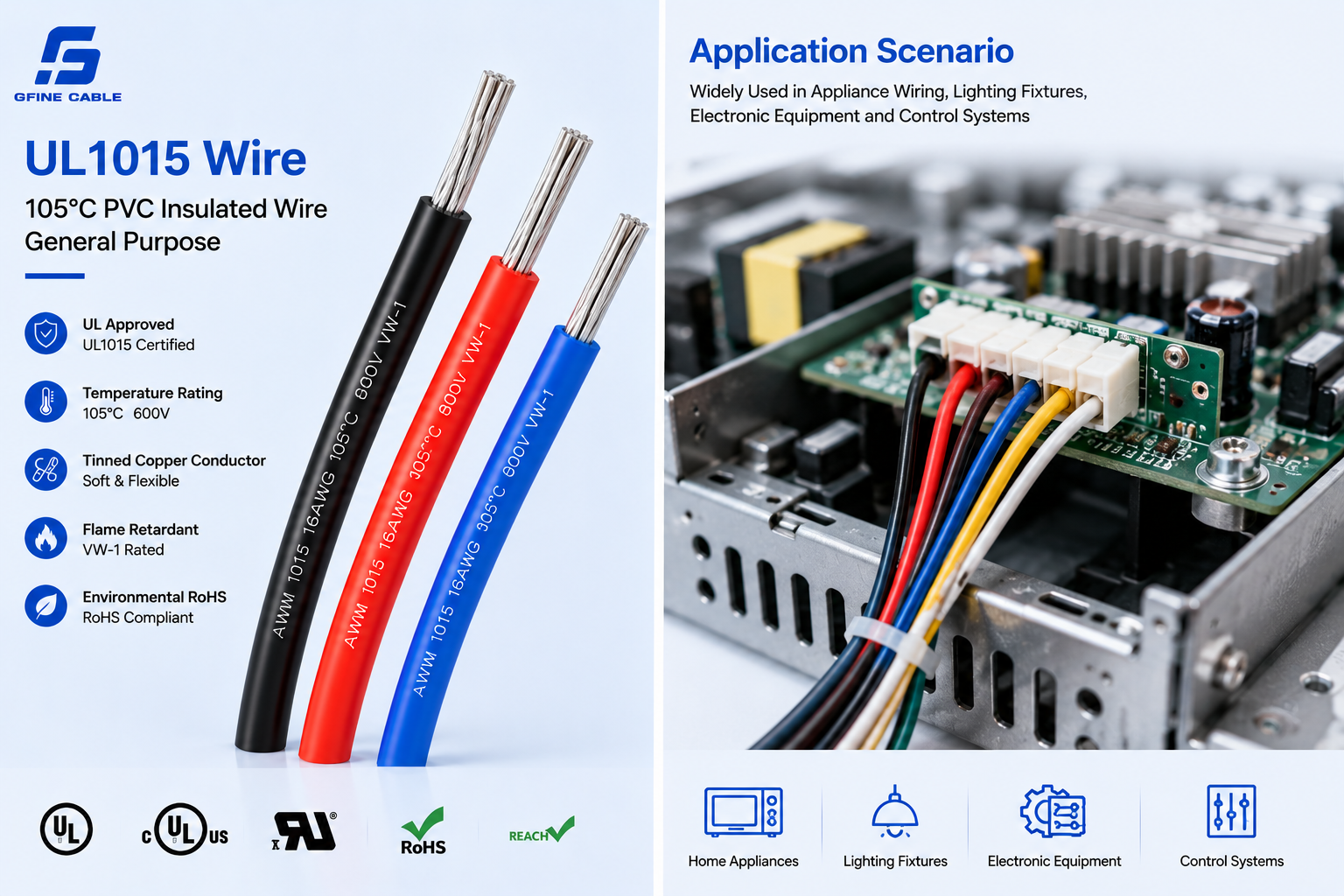

UL 1015 PVC Hook-up Wire

High-Performance Internal Wiring Solution | 600V / 105°C Rated

UL Certified RoHS Compliant VW-1 Flame Retardant

Technical Specifications

Parameter	Description & Standard
Rated Voltage	600V AC (Ensures safety in high-density industrial panels)
Temperature Range	-40°C to +105°C (Maintain flexibility in extreme thermal conditions)
Conductor	99.99% Tinned Copper (Superior solderability and corrosion resistance)
Insulation	Lead-Free, Flame-Retardant PVC (VW-1 / FT1 Tested)

Precision Stripping

Uniform insulation thickness ensures high-speed automated stripping without conductor damage.

Global Certification

Fully UL/CSA certified, facilitating immediate export to North American and European markets.

Need a Custom Specification or Free Sample?

Talk to Our Application Engineer

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

1.Rated temperature:80ºC,90ºC,105ºC

3.According to:UL subject 758,UL1581,CSA C22.2

4.Solid or Stranded,tinned or bare copper conductor30AWG-2000kcmil

5.PVC insulation.

6.Passes UL VW-1 & CSA FT1 Vertical flame test

7.Uniform insulation thickness of wire to ensure easy stripping and cutting.

8.Environmental testing pass RoHS

9.The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准包装长度
UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter(mm)	Insulation thickness (mm)	Wire O.D(mm)	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL1015	26	7/0.16	0.48	0.76	2.10	150	2000	610
	24	11/0.16	0.61		2.20	94.2
	22	17/0.16	0.76		2.40	59.4
	20	21/0.178	0.94		2.60	36.7
	18	16/0.254	1.17		2.80	23.2
	16	26/0.254	1.49		3.10	14.6	1000	305
	14	41/0.254	1.87		3.50	8.96
	12	65/0.254	2.36		4.00	5.64
	10	105/0.254	3.00		4.70	3.546
	8	164/0.254	3.80	1.14	6.50	2.23	492	150
	6	260/0.254	4.80	1.52	8.40	1.403	328	100
	4	412/0.254	6.00		9.50	0.882	328	100
	2	665/0.254	7.70		11.50	0.5548	/	REEL
	1	820/0.254	8.50	2.03	13.90	0.4398
	1/0	1035/0.254	9.60		14.80	0.3487
	2/0	1311/0.254	10.80		16.00	0.2766
	3/0	1650/0.254	12.20		17.50	0.2194
	4/0	2090/0.254	13.80		19.50	0.1722
