UL10267 Wire Manufacturer | 1000V XLPE Insulated Battery Flexible Power & EV Cable

UL10267 XLPE Insulated Wire 1000V 105°C Flexible Tinned Copper Battery Cable

Short Description:

Technical Specifications

Parameter	Details
Standard Compliance	UL 758, UL 1581, RoHS/REACH Approved
Conductor Material	Stranded Tinned or Bare Copper (30 AWG - 10 AWG)
Insulation Type	Irradiation Cross-Linked Polyethylene (XLPE/XLPO)
Rated Voltage	2000 Volts AC
Rated Temperature	105°C (221°F)
Flame Rating	VW-1, FT1 (Self-extinguishing)

Send email to us

Product Detail

Product Tags

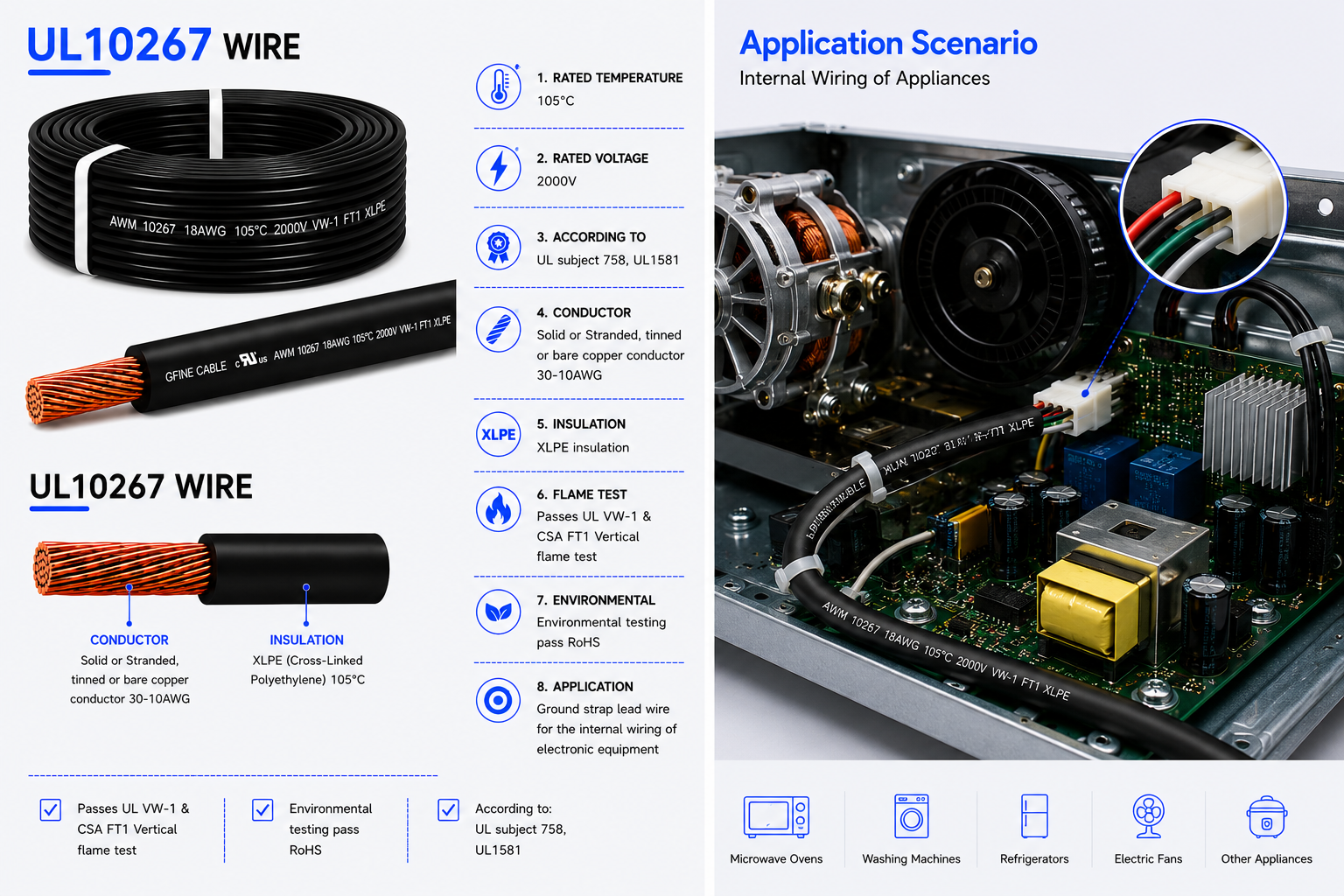

PRODUCT DESCRIPTION
1. Rated temperature:105ºC
2.Rated voltage:2000V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-10AWG
5.XLPE insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Ground strap lead wire for the internal wiring of electronic equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准长度 Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter	Insulation thickness	Wire O.D	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL10267	26	7/0.16	0.48	0.43	1.55	150	2000	610
	24	11/0.16	0.61		1.7	94.2
	22	17/0.16	0.76		1.8	59.4
	20	21/0.178	0.94		2.0	36.7
	18	16/0.254	1.17		2.25	23.2
	16	26/0.254	1.49		2.6	14.6
	14	41/0.254	1.87		3.0	8.96
	12	65/0.254	2.36		3.5	5.64	1000	305
	10	105/0.254	3.0		4.2	3.546	1000	305
