UL3289 Wire Manufacturer | XLPE Insulated High Temperature Hook Up 150°C Electronic Cable

UL3289 XLPE Insulated Wire 150°C High Temperature Hook-Up Wire Flexible Copper Cable

Short Description:

Technical Specifications

Parameter	Details
Standard Compliance	UL 758, CSA AWM I A/B, RoHS Compliant
Conductor Material	Stranded Tinned or Bare Copper (30 AWG - 4/0 AWG)
Insulation Type	Irradiation Cross-Linked Polyethylene (XLPE/XLPO)
Rated Voltage	600V AC / 750V DC
Rated Temperature	150°C (302°F)
Flame Rating	VW-1, FT1 (Highly Flame Retardant)

Send email to us

Product Detail

Product Tags

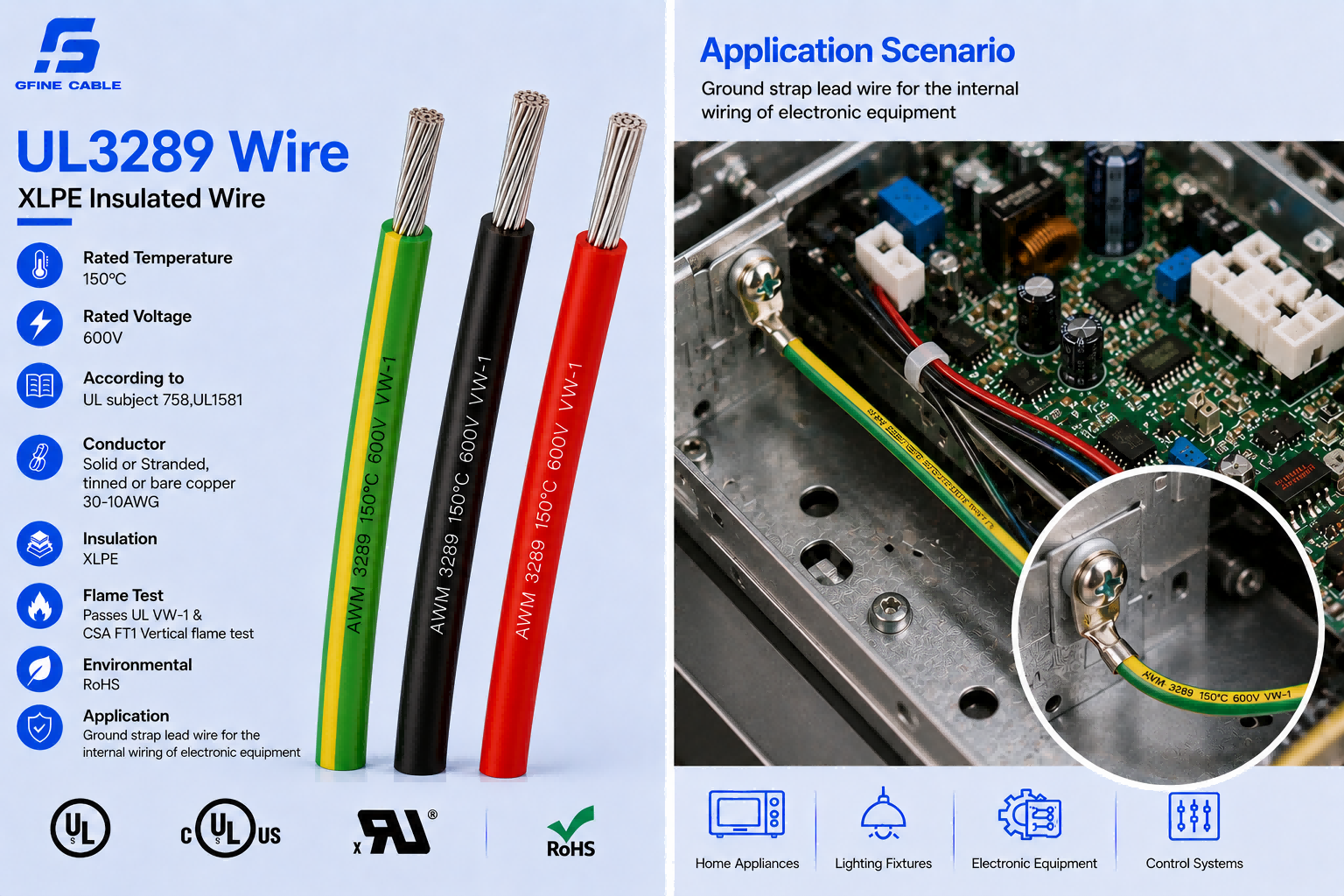

PRODUCT DESCRIPTION
1. Rated temperature:150ºC
2.Rated voltage:600V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-10AWG
5.XLPE insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Ground strap lead wire for the internal wiring of electronic equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准包装长度 Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor O.D(mm)	Insulation thickness (mm)	Wire O.D(mm)	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL3289	26	7/0.16	0.48	0.76	2.10	150	2000	610
	24	11/0.16	0.61		2.20	94.2
	22	17/0.16	0.76		2.40	59.4
	20	21/0.178	0.94		2.60	36.7
	18	16/0.254	1.17		2.80	23.2
	16	26/0.254	1.49		3.10	14.6	1000	305
	14	41/0.254	1.87		3.50	8.96
	12	65/0.254	2.36		4.00	5.64
	10	105/0.254	3.00		4.70	3.546
	8	164/0.254	3.80	1.14	6.50	2.23	492	150
	6	260/0.254	4.80	1.52	8.40	1.403	328	100
	4	412/0.254	6.00		9.50	0.882	328	100
	2	665/0.254	7.70		11.50	0.5548	/	REEL
	1	820/0.254	8.50	2.03	13.90	0.4398
	1/0	1035/0.254	9.60		14.80	0.3487
	2/0	1311/0.254	10.80		16.00	0.2766
	3/0	1650/0.254	12.20		17.50	0.2194
	4/0	2090/0.254	13.80		19.50	0.1722
