UL3640 Silicone Insulated Motor Lead Wire
Technical Specifications
Parameter Details Standard Compliance UL 758, AWM Style 3640 Conductor Range 16 AWG - 600 kcmil (Solid or Stranded Tinned/Bare Copper) Insulation Material High-Purity Flexible Silicone Rubber Rated Voltage 1100V AC Temperature Range -60°C to +150°C / +180°C Flame Resistance FT2 / Horizontal Flame (Standard Compliant) -
UL3133 Silicone Insulated Wire | 150°C, 600VAC
UL3133 silicone insulated single-conductor wire
Insulation Silicone rubber Construction Single conductor; stranding and dimensions per agreed specification Style temperature / voltage 150°C / 600VAC 4 AWG enquiries Request construction-specific diameter, resistance, terminal fit and sample evaluation Approval and flame requirements Confirm GFINE file coverage and required tests for the exact supplied construction Request a construction review or sample
For a UL3133 quotation, send your required wire size, conductor stranding, colour, quantity, maximum outside diameter and terminal part number. Include the operating current, ambient temperature, AC or DC working voltage, routing space and required flame tests so the construction can be reviewed for your equipment.
Comparing silicone wire with PVC or cross-linked alternatives? Review temperature, insulation thickness, flexibility, conductor resistance and termination requirements before approving a substitution. A different UL Style is not automatically a drop-in replacement.
-
UL3135 Silicone Insulated Wire | 200°C, 600VAC
UL3135 Silicone Rubber Cable is a high-temperature flexible electrical wire designed for demanding industrial, automotive, and appliance applications. It features UL-approved silicone rubber insulation, providing excellent resistance to heat, flame, and mechanical stress.
This cable is widely used in environments requiring continuous high-temperature operation, stable electrical performance, and strong mechanical protection, such as heating equipment, power systems, and industrial machinery.
-
UL3122 Silicone Wire | Fiberglass Braid
UL3122 Silicone Rubber Cable is a high-temperature, flexible electrical wire designed for demanding industrial, automotive, and electronic applications. It uses high-grade silicone rubber insulation combined with fiberglass braided reinforcement, providing excellent thermal resistance, mechanical strength, and long-term durability.
This cable is UL certified and widely used in environments requiring high heat resistance, stable electrical performance, and superior flexibility, such as heating equipment, industrial machinery, and electrical appliances.
-

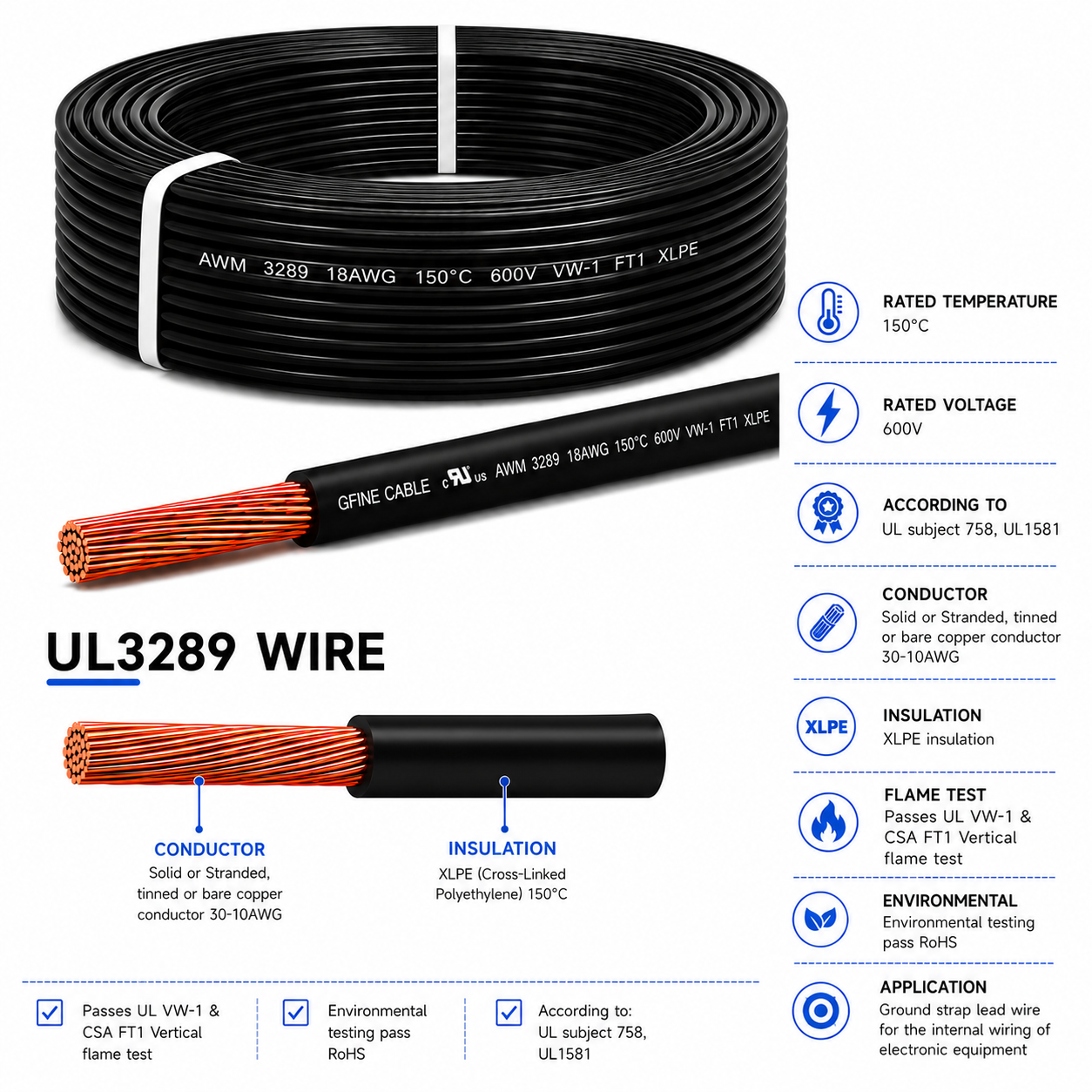

UL3289 XLPE Hook-Up Wire | 150°C, 600V
Technical Specifications
Parameter Details Standard Compliance UL 758, CSA AWM I A/B, RoHS Compliant Conductor Material Stranded Tinned or Bare Copper (30 AWG - 4/0 AWG) Insulation Type Irradiation Cross-Linked Polyethylene (XLPE/XLPO) Rated Voltage 600V AC / 750V DC Rated Temperature 150°C (302°F) Flame Rating VW-1, FT1 (Highly Flame Retardant) -

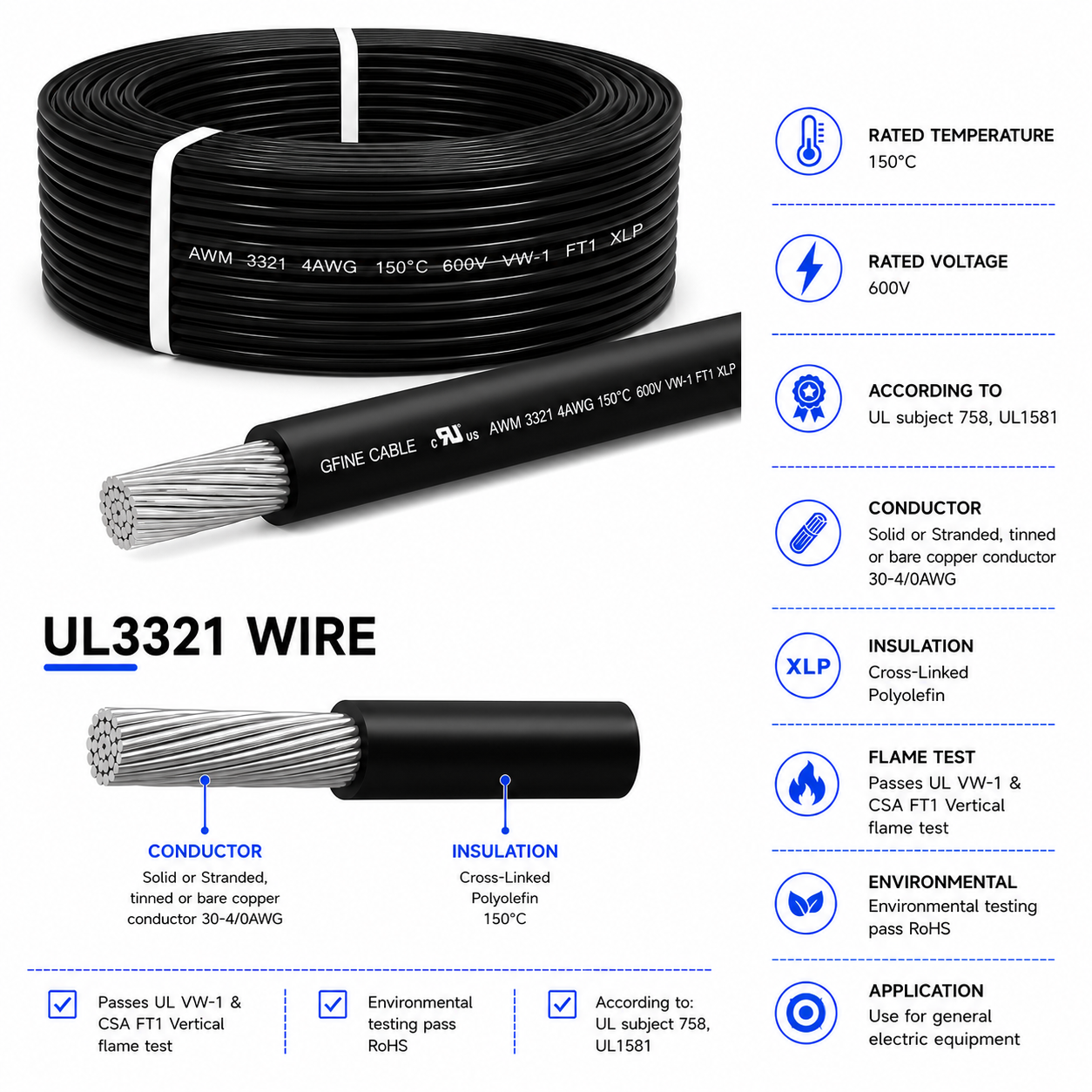

UL3321 Crosslinked Polyolefin Wire | 150°C, 600V
Technical Specifications
Parameter Details Standard Compliance UL 758, CSA AWM I A/B, RoHS Compliant Conductor Material Stranded Tinned Copper (30 AWG - 4/0 AWG) Insulation Type Irradiation Cross-Linked Polyethylene (XLPE) Rated Voltage 600V AC Rated Temp 150°C (302°F) Flame Rating VW-1, FT1 (Self-extinguishing) -

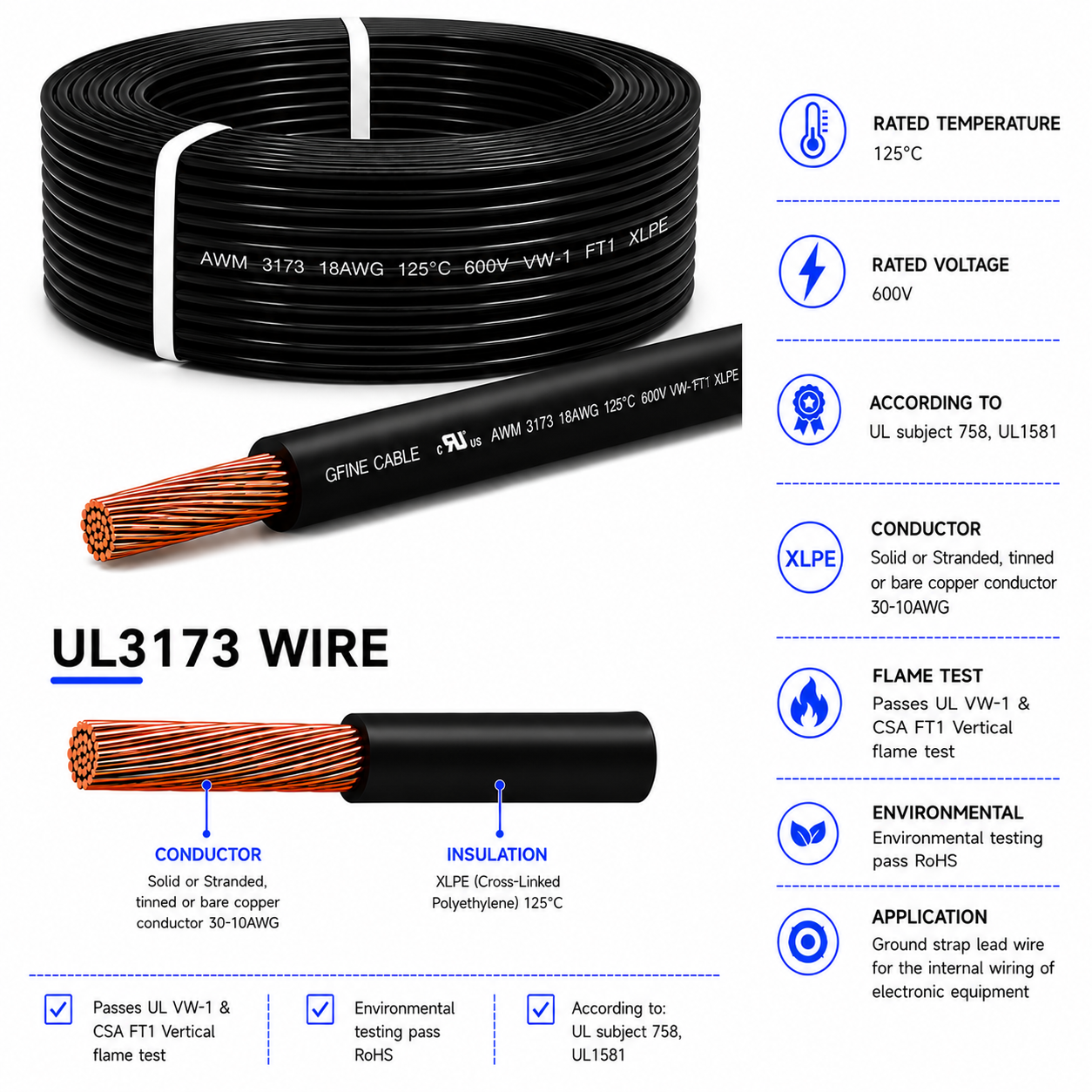

UL3173 XLPE Hook-Up Wire | 125°C, 600V
Technical Specifications
Parameter Details Standard Compliance UL 758, CSA AWM I A/B, RoHS Compliant Conductor Material Finely Stranded Tinned or Bare Copper (26 AWG - 10 AWG) Insulation Type Cross-Linked Polyethylene (XLPE) Rated Voltage 600 Volts AC Rated Temp 125°C (257°F) Flame Rating VW-1, FT1 (Self-extinguishing) -
-
-
-
-
