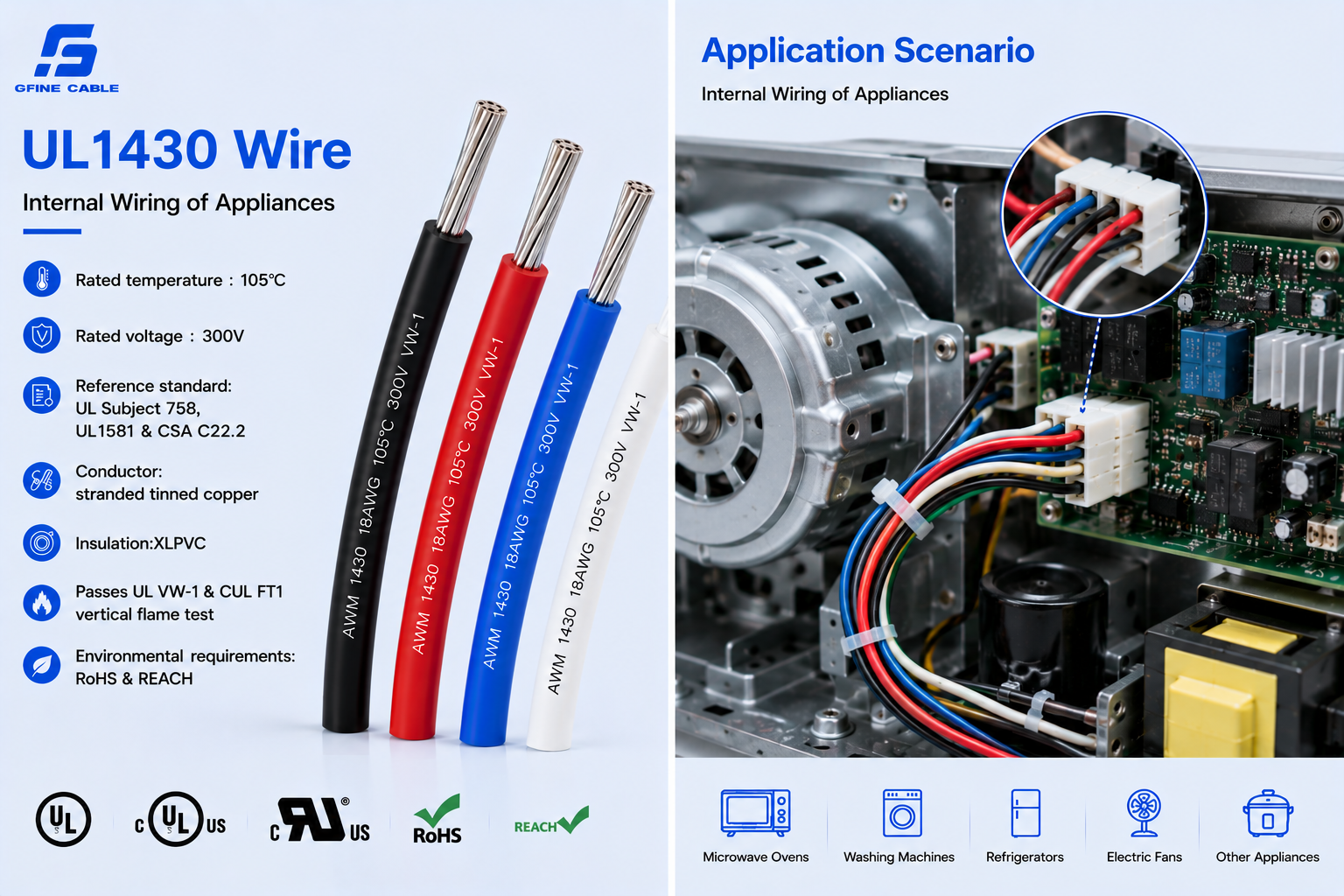

UL1430 XLPVC insulated wire

UL1430 XLPVC insulated wire

UL1430 XLPVC insulated wire

Short Description:

UL 1430 XLPVC insulated hook-up wire for internal wiring in electronic equipment, appliances and OEM cable assemblies. Available in custom colors, sizes and lengths.
Technical Specifications

Parameter Details
Standard Compliance UL 758, UL 1581, CSA Approved
Conductor Material Solid or Stranded Tinned/Bare Copper (26 AWG - 10 AWG)
Insulation Material Cross-Linked / Irradiated PVC (XLPVC)
Rated Voltage 300V AC
Rated Temperature 105°C (221°F)
Flame Rating VW-1, FT1 (Flame Retardant)

Product Detail

Product Tags

PRODUCT DESCRIPTION

Rated temperature ：105℃

Rated voltage ：300V

Reference standard：UL Subject 758,   UL1581 & CSA  C22.2

Conductor: stranded tinned copper

Insulation:XLPVC

Passes UL VW-1 & CUL  FT1 vertical flame test

Environmental   requirements: RoHS & REACH;

Internal Wiring of Appliances

PARAMETER

Conductor Insulation Maximun Resistance at    20℃
导体 绝缘
AWG No./mm Nom.Dia. Nom.Thick. Average 20℃最大导体电阻Ω/km
线规 线数/线径 外径 平均厚度 参考外径
　 　 　 mm mm mm
16 26/0.254 1.50 0.38 2.30 14.6
18 41/0.16 1.18 0.38 2.00 23.2
20 26/0.16 0.94 0.38 1.80 36.7
22 17/0.16 0.76 0.38 1.60 59.4
24 11/0.16 0.61 0.38 1.45 94.2
26 7/0.16 0.48 0.38 1.30 150
