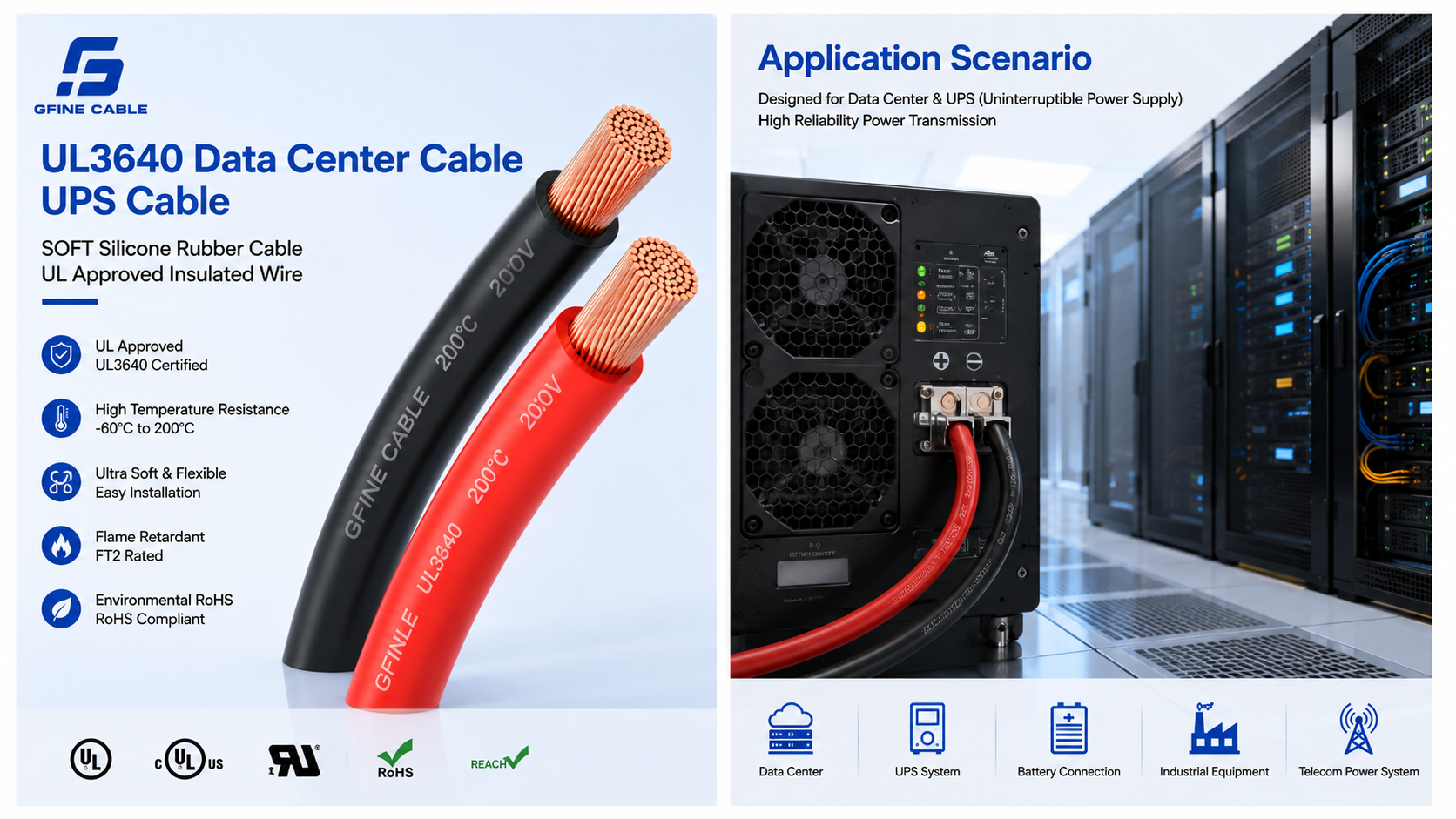

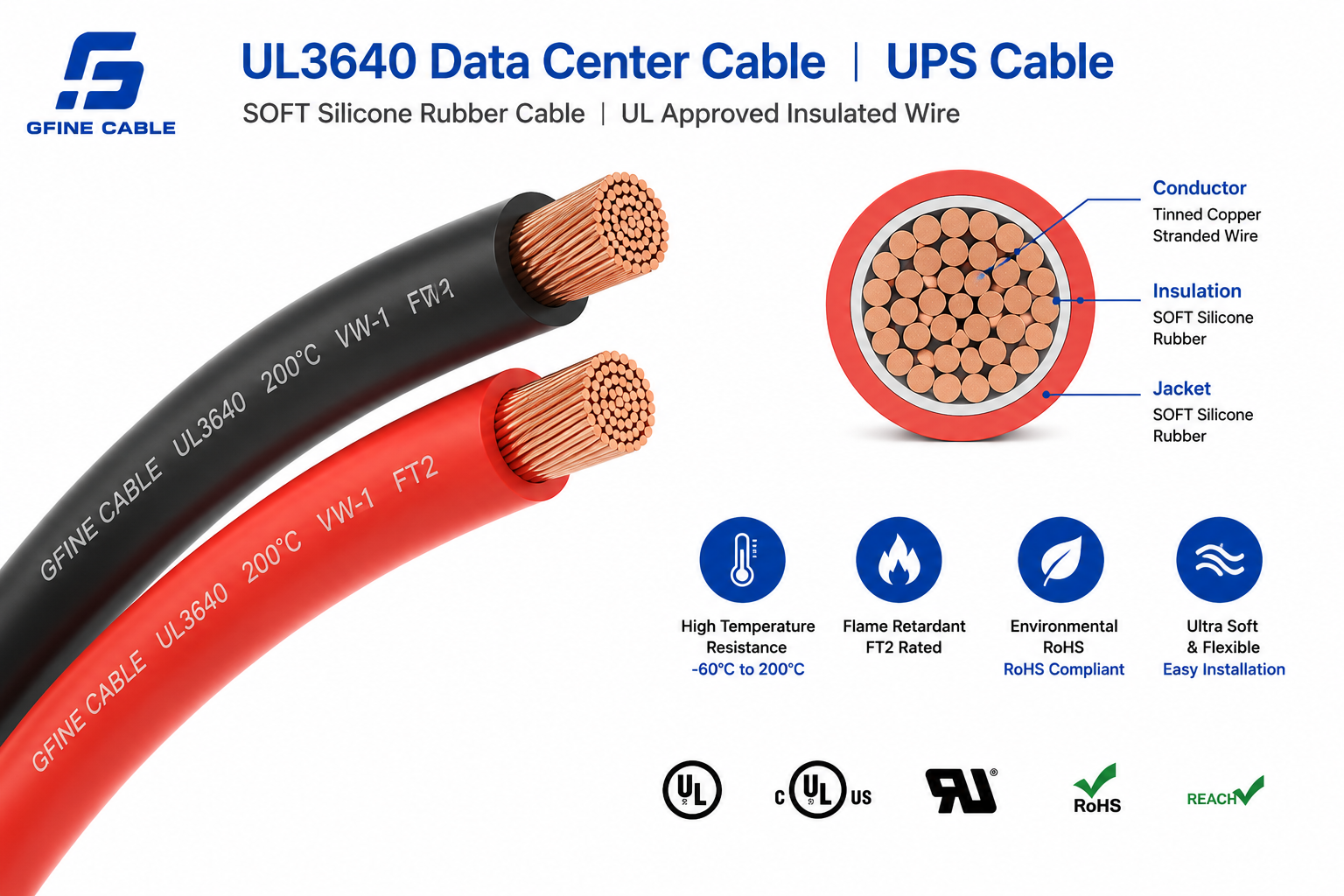

UL 3640 High-Voltage 1100V Silicone Rubber Motor Lead Wire

UL 3640 High-Voltage 1100V Silicone Rubber Motor Lead Wire

UL 3640 High-Voltage 1100V Silicone Rubber Motor Lead Wire

Short Description:

Technical Specifications

Parameter Details
Standard Compliance UL 758, AWM Style 3640
Conductor Range 16 AWG - 600 kcmil (Solid or Stranded Tinned/Bare Copper)
Insulation Material High-Purity Flexible Silicone Rubber
Rated Voltage 1100V AC
Temperature Range -60°C to +150°C / +180°C
Flame Resistance FT2 / Horizontal Flame (Standard Compliant)

Product Detail

Product Tags

PRODUCT DESCRIPTION

Rated temperature：150℃

Rated voltage：1100V

Reference standard：UL Subject 758, UL1581 & CSA  C22.2  No.210.2

Conductor: stranded tinned copper

Insulation: Silicone Rubber

Passes UL VW-1 & CUL  FT1 vertical flame test

Environmental requirements: RoHS & REACH;

Internal wiring of appliances where totally enclosed


PARAMETER

Conductor Insulation Maximun    Resistance at 20℃

AWG No./mm Nom.Dia. Nom.Thick. Average
      mm mm mm
2/0 1311/0.254 10.80 1.52 14.60 0.2766
1/0 1035/0.254 9.60 1.52 13.30 0.3487
2 665/0.254 7.70 1.27 11.00 0.5548
4 412/0.254 6.00 1.27 8.90 0.882
6 260/0.254 4.80 1.27 7.70 1.403
8 164/0.254 3.80 1.27 6.60 2.23
10 105/0.254 3.01 1.27 5.80 3.546
12 65/0.254 2.37 1.27 8.10 5.64
14 41/0.254 1.88 1.27 4.60 8.96
16 26/0.254 1.50 1.27 4.20 14.6
