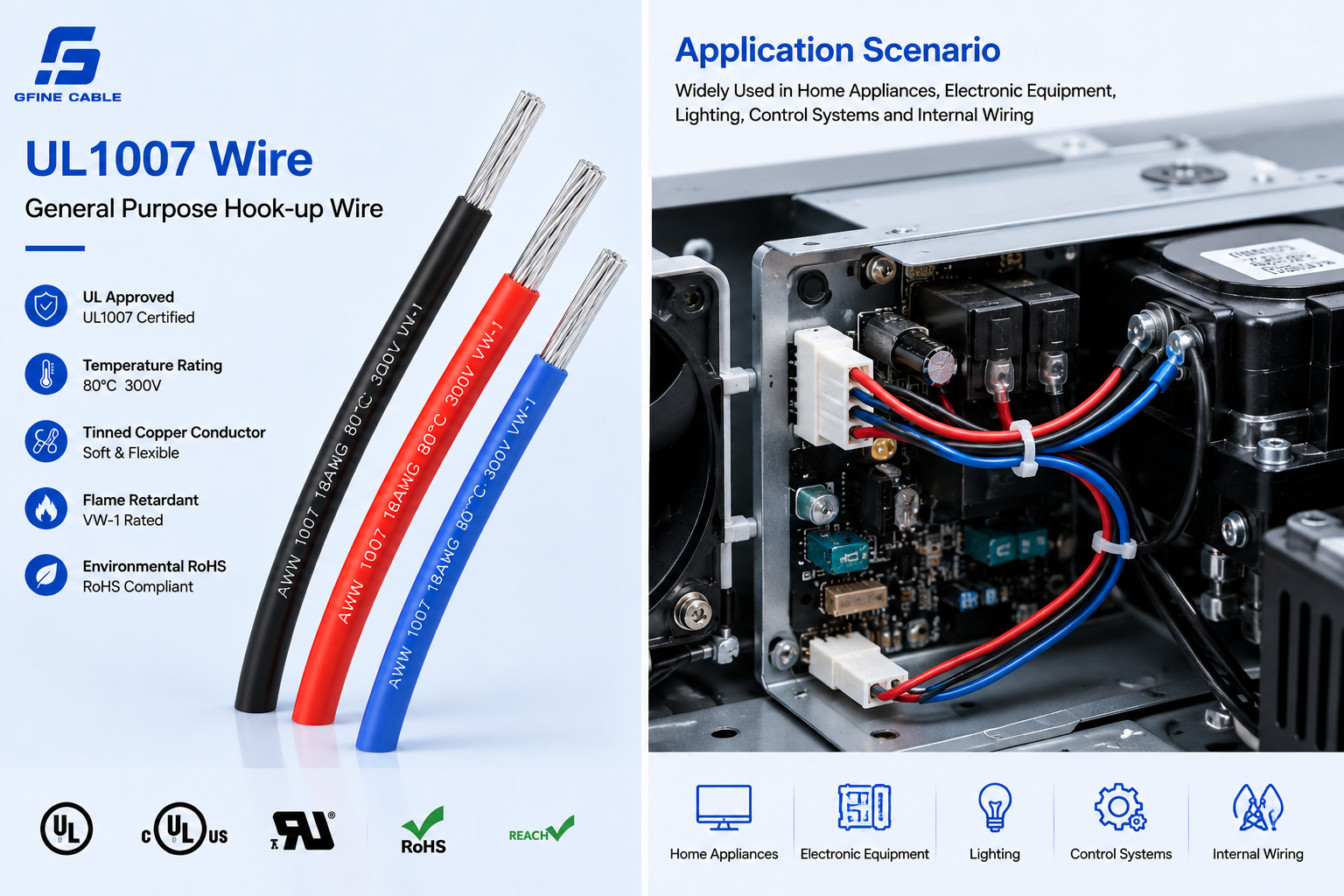

PRODUCT DESCRIPTION
1.Rated temperature:80ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 28~16AWG
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Uniform insulation thickness of wire to ensure easy stripping and cutting.
8.Environmental testing： pass RoHS
9.Internal wiring of appliances or electronic equipment
PRODUCT PARAMETERS
| UL 型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness(mm) | Wire O.D(mm) | Max Cond. resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL1007 | 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 | 2000 | 610 |
| 26 | 7/0.16 | 0.48 | 1.30 | 150 | ||||
| 24 | 11/0.16 | 0.61 | 1.40 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.60 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 1.80 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.00 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 2.35 | 14.6 | ||||
