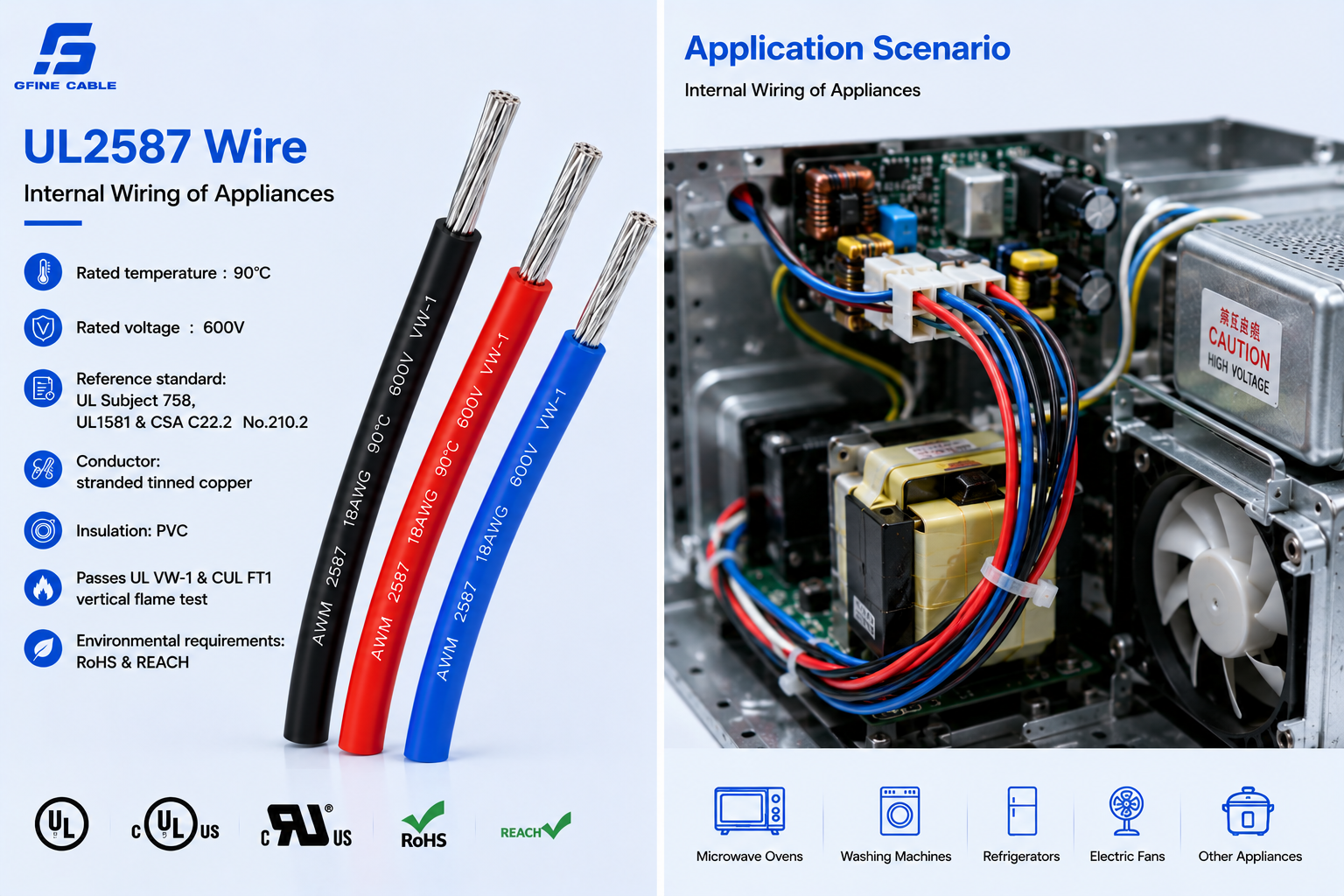

UL2587 PVC insulated wire
UL2587 PVC insulated wire
PRODUCT DESCRIPTION
Rated temperature ：90℃
Rated voltage ：600V
Reference standard：UL Subject 758, UL1581 & CSA C22.2 No.210.2
Conductor: stranded tinned copper
Insulation: PVC
Passes UL VW-1 & CUL FT1 vertical flame test
Environmental requirements: RoHS & REACH;
Internal Wiring of Appliances
PARAMETER
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 mm |
参考外径 mm |
|||
| 16 | 2× | 0.76 | 7.70 | 14.60 | ||
| 3× | 8.20 | |||||
| 4× | 9.00 | |||||
| 18 | 2× | 0.76 | 7.10 | 23.20 | ||
| 3× | 7.50 | |||||
| 4× | 8.20 | |||||
| 20 | 2× | 0.76 | 6.60 | 36.70 | ||
| 3× | 7.00 | |||||
| 4× | 7.60 | |||||
| 22 | 2× | 0.76 | 6.20 | 59.40 | ||
| 3× | 6.60 | |||||
| 4× | 7.20 | |||||
