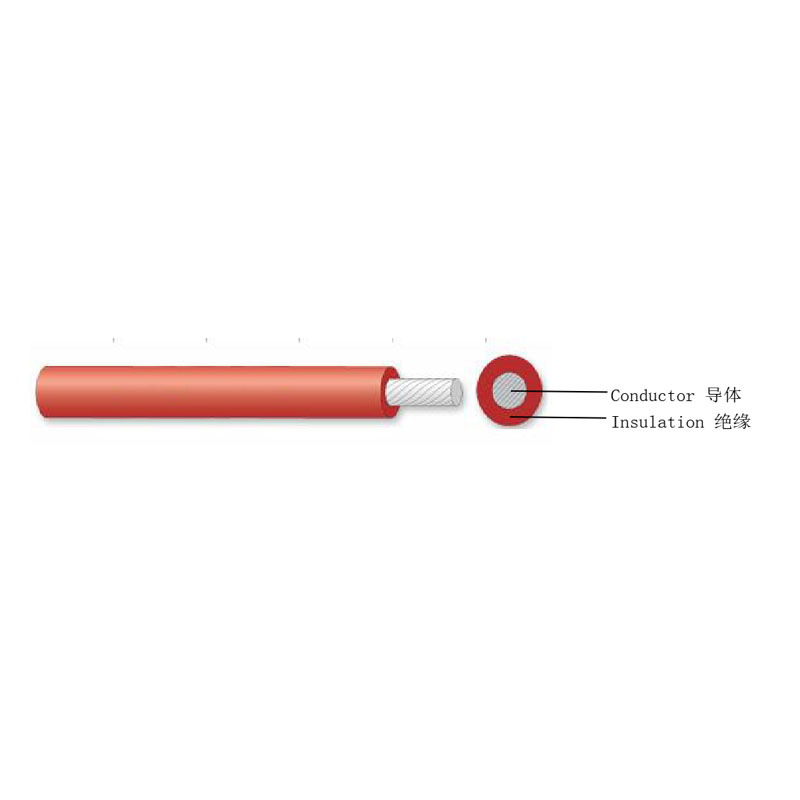

JGG Silicone Rubber Cable
JGG Silicone Rubber Cable
PRODUCT DESCRIPTION
1.Rated voltage: 3000/6000/10000V
2.Operating temperature：-60～+180℃
3.Conductor: solid core or stranded tinned copper wire
4.Insulation：Silicone rubber
5.Widely used in lighting fixtures, household appliances, electric appliances, meters and instruments, motor lead wires and electronics, lamps and lanterns, combustion appliances and other high-temperature environment.
PRODUCT PARAMETERS
导体Conductor | 绝缘厚度 Insulation thickness(mm) | 电缆外径 O.D (mm) | 最大导体电阻 | ||||||
截面积area(mm2) | 结构Strand (No/mm) | 直径 O.D(mm) | 3000V | 6000V | 10000V | 3000V | 6000V | 10000V | Max Cond. Resistance （Ω/km ,20ºC） |
0.5 | 28/0.15 | 0.9 | 2.0 | 2.5 | 3.6 | 4.9 | 5.9 | 8.1 | 40.10 |
0.75 | 24/0.20 | 1.15 | 2.0 | 2.5 | 3.6 | 5.2 | 6.2 | 8.4 | 26.70 |
1.0 | 32/0.20 | 1.3 | 2.0 | 2.5 | 3.6 | 5.3 | 6.3 | 8.5 | 20.00 |
1.5 | 48/0.20 | 1.6 | 2.2 | 2.8 | 3.8 | 6.0 | 7.2 | 9.2 | 13.70 |
2.0 | 40/0.25 | 1.85 | 2.2 | 2.8 | 3.8 | 6.3 | 7.5 | 9.5 | 9.90 |
2.5 | 49/0.25 | 2.0 | 2.4 | 3.0 | 4.0 | 6.8 | 8.0 | 10.0 | 8.21 |
4 | 56/0.30 | 2.8 | 2.4 | 3.0 | 4.0 | 7.6 | 8.8 | 10.8 | 5.09 |
6 | 84/0.30 | 3.6 | 2.6 | 3.2 | 4.2 | 8.8 | 10.0 | 12.0 | 3.39 |
10 | 84/0.40 | 4.6 | 2.6 | 3.2 | 4.2 | 9.8 | 11.0 | 13.0 | 1.95 |
16 | 126/0.40 | 5.8 | 2.8 | 3.5 | 4.5 | 11.4 | 12.8 | 14.8 | 1.24 |
25 | 196/0.40 | 7.6 | 2.8 | 3.5 | 4.5 | 13.2 | 14.6 | 16.6 | 0.795 |
35 | 494/0.30 | 8.8 | 2.8 | 3.7 | 4.8 | 14.4 | 16.2 | 18.5 | 0.565 |
50 | 396/0.40 | 10.6 | 3.0 | 3.7 | 4.8 | 16.6 | 18.0 | 20.2 | 0.393 |
70 | 551/0.40 | 12.8 | 3.0 | 3.9 | 5.0 | 18.8 | 20.6 | 22.8 | 0.277 |
95 | 760/0.40 | 14.8 | 3.2 | 3.9 | 5.0 | 21.2 | 22.6 | 24.8 | 0.210 |
120 | 608/0.50 | 16.5 | 3.2 | 4.2 | 5.5 | 23.0 | 25.0 | 27.5 | 0.164 |
150 | 760/0.50 | 18.2 | 3.5 | 4.5 | 5.5 | 25.2 | 27.2 | 29.2 | 0.132 |
185 | 925/0.50 | 20.0 | 3.5 | 4.8 | 5.7 | 27.0 | 29.6 | 31.5 | 0.108 |
