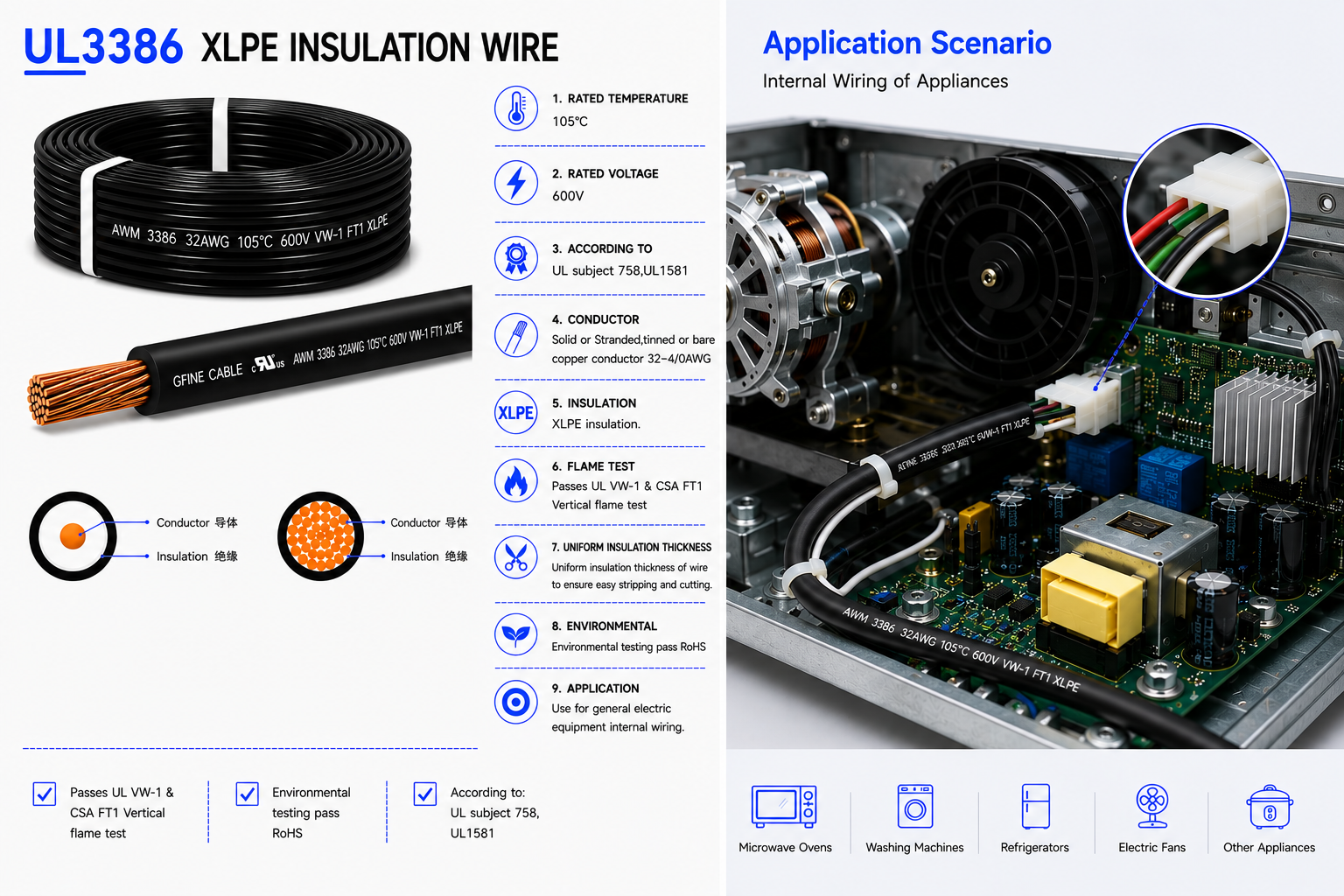

UL3386 HOOK UP WIRE

Short Description:

105ºC 600V XLPE INSULATION WIRE

Rated temperature:105ºC
Rated voltage:600V
According to:UL subject 758,UL1581
Solid or Stranded,tinned or bare copper conductor 32-4/0AWG
XLPE insulation.
Passes UL VW-1 & CSA FT1 Vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting.
Environmental testing pass RoHS
Use for general electric equipment internal wiring

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

1.Rated temperature:105ºC

2.Rated voltage:600V

3.According to:UL subject 758,UL1581

4.Solid or Stranded,tinned or bare copper conductor 32-4/0AWG

5.XLPE insulation.

6.Passes UL VW-1 & CSA FT1 Vertical flame test

7.Uniform insulation thickness of wire to ensure easy stripping and cutting.

8.Environmental testing pass RoHS

9.Use for general electric equipment internal wiring.

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准包装长度
UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter(mm)	Insulation thickness (mm)	Wire O.D(mm)	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL3386	26	7/0.16	0.48	0.76	2.10	150	2000	610
	24	11/0.16	0.61		2.20	94.2
	22	17/0.16	0.76		2.40	59.4
	20	21/0.178	0.94		2.60	36.7
	18	16/0.254	1.17		2.80	23.2
	16	26/0.254	1.49		3.10	14.6	1000	305
	14	41/0.254	1.87		3.50	8.96
	12	65/0.254	2.36		4.00	5.64
	10	105/0.254	3.00		4.70	3.546
	8	164/0.254	3.80	1.14	6.50	2.23	492	150
	6	260/0.254	4.80	1.52	8.40	1.403	328	100
	4	412/0.254	6.00		9.50	0.882	328	100
	2	665/0.254	7.70		11.50	0.5548	/	REEL
	1	820/0.254	8.50	2.03	13.90	0.4398
	1/0	1035/0.254	9.60		14.80	0.3487
	2/0	1311/0.254	10.80		16.00	0.2766
	3/0	1650/0.254	12.20		17.50	0.2194
	4/0	2090/0.254	13.80		19.50	0.1722
