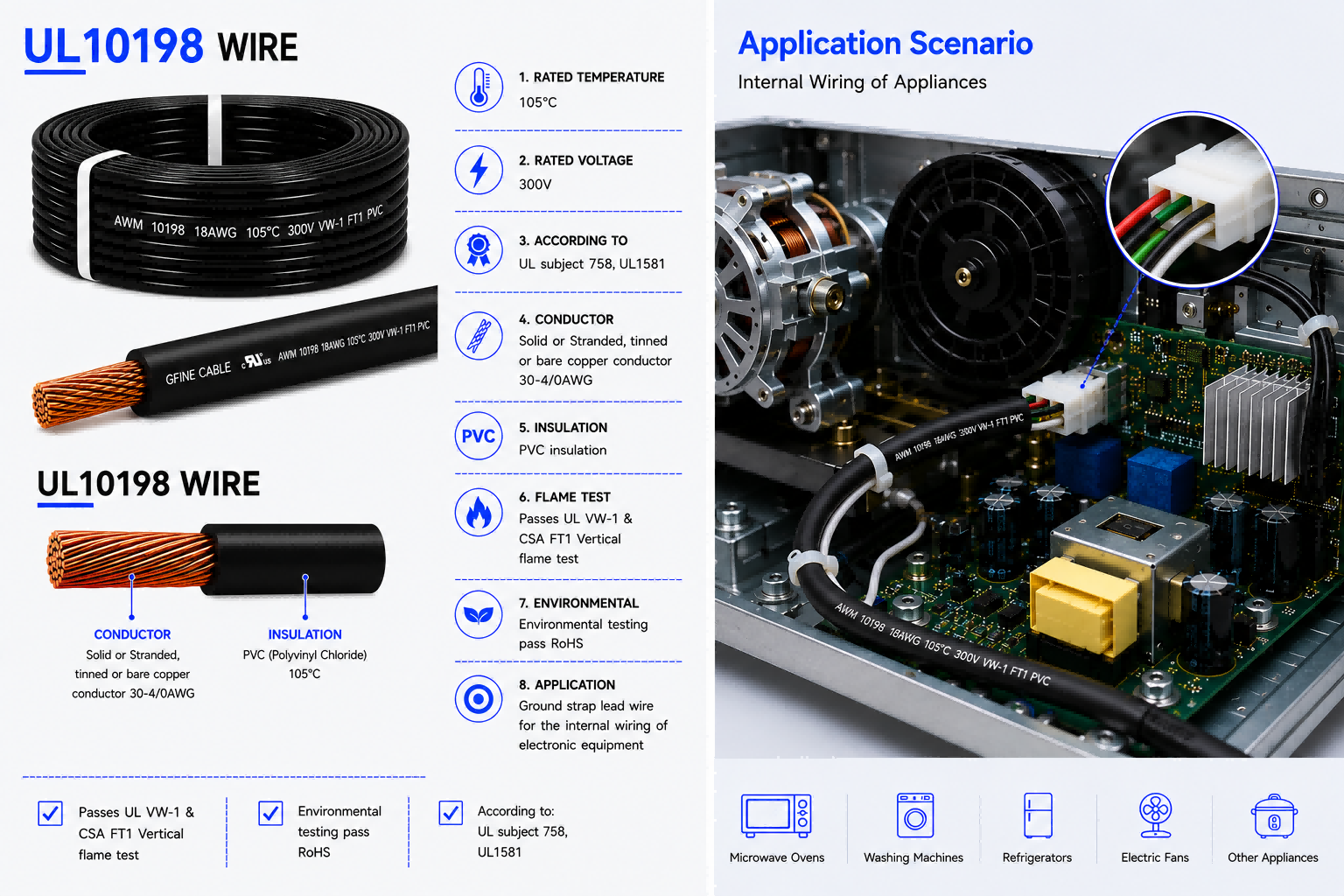

UL10198 HOOK UP WIRE

Previous: UL10267 HOOK UP WIRE
Next: UL1571 HOOK UP WIRE

Short Description:

105ºC 300V SOFT PVC INSULATION WIRE

Rated temperature:105ºC
Rated voltage:300V
According to:UL subject 758,UL1581
Solid or Stranded,tinned or bare copper conductor 30-4/0AWG
PVC insulation.
Passes UL VW-1 & CSA FT1 Vertical flame test
Environmental testing pass RoHS
Ground strap lead wire for the internal wiring of electronic equipment

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION
1. Rated temperature:105ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-4/0AWG
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Ground strap lead wire for the internal wiring of electronic equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径 (mm)	绝缘厚度(mm)	电缆外径 (mm)	最大导体电阻（Ω/km）
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter	Insulation thickness	Wire O.D	Max Cond. resistance（Ω/km ,20ºC）
UL10198	26	7/0.16	0.48	0.38	1.30	150
	24	11/0.16	0.61		1.40	94.2
	22	17/0.16	0.76		1.60	59.4
	20	21/0.178	0.94		1.80	36.7
	18	63/0.127	1.17		2.00	23.2
	16	105/0.127	1.49		2.35	14.6
	14	168/0.127	1.87	0.51	3.20	8.96
	12	259/0.127	2.36		3.80	5.64
	10	413/0.127	3.00		4.50	3.546
	8	658/0.127	3.80	0.76	6.00	2.23
	6	1029/0.127	4.80		7.20	1.403
	4	1638/0.127	6.00		8.60	0.882
	2	2604/0.127	7.70		10.40	0.5548
	1	3283/0.127	8.50	1.02	12.00	0.4398
	1/0	4137/0.127	9.60	1.02	13.20	0.3487
	2/0	5225/0.127	10.80	1.27	15.00	0.2766
	3/0	6574/0.127	12.20		16.70	0.2194
	4/0	8284/0.127	13.80		18.40	0.1722
