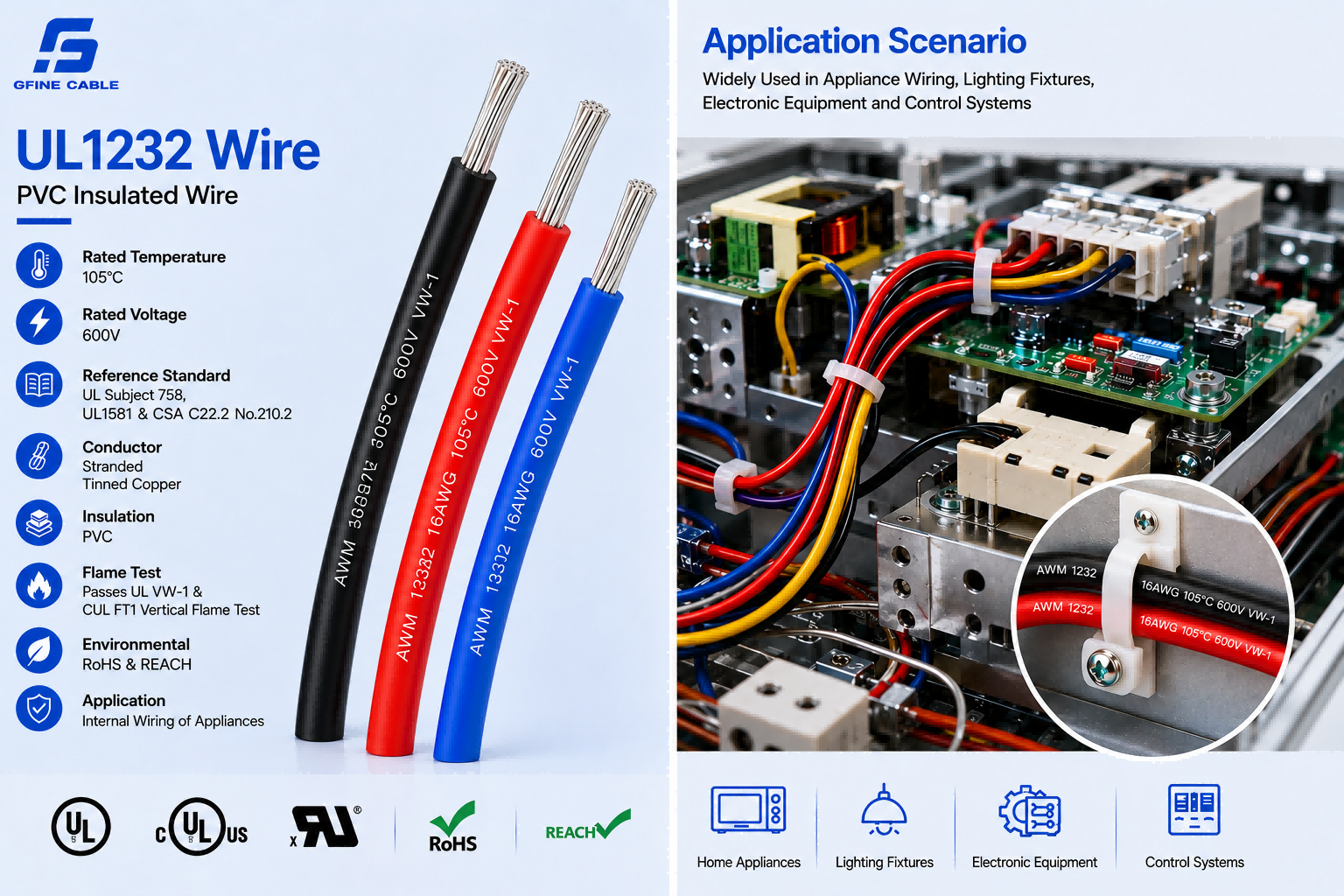

UL1232 PVC insulated wire
UL1232 PVC insulated wire
PRODUCT DESCRIPTION
Rated temperature ：105℃
Rated voltage ：600V
Reference standard：UL Subject 758, UL1581 & CSA C22.2 No.210.2
Conductor: stranded tinned copper
Insulation:PVC
Passes UL VW-1 & CUL FT1 vertical flame test
Environmental requirements: RoHS & REACH;
Internal Wiring of Appliances
PARAMETER
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 1/0 | 1045/0.254 | 10.12 | 1.98 | 14.20 | 0.349 | |
| 2 | 665/0.254 | 8.16 | 1.50 | 11.30 | 0.570 | |
| 4 | 420/0.254 | 6.47 | 1.50 | 9.60 | 0.900 | |
| 6 | 266/0.254 | 5.15 | 1.50 | 8.30 | 1.403 | |
| 8 | 168/0.254 | 4.10 | 1.50 | 7.30 | 2.23 | |
