UL1185 Shielded Wire Manufacturer | PVC Insulated EMI Electronic Cable UL Approved Signal

UL1185 Shielded Wire 300V 80°C PVC Insulated Tinned Copper Braided Electronic Cable

Parameter	Details
Standard Compliance	UL 758, UL 1581, CSA Approved
Conductor Material	Tinned or Bare Stranded Copper (30 AWG - 10 AWG)
Insulation / Jacket	High-Grade PVC Insulation + PVC External Jacket
Shielding Type	Tinned Copper Spiral or Braided Shield
Rated Voltage/Temp	300V AC / 80°C (176°F)
Flame Rating	VW-1, FT1 (Flame Retardant)

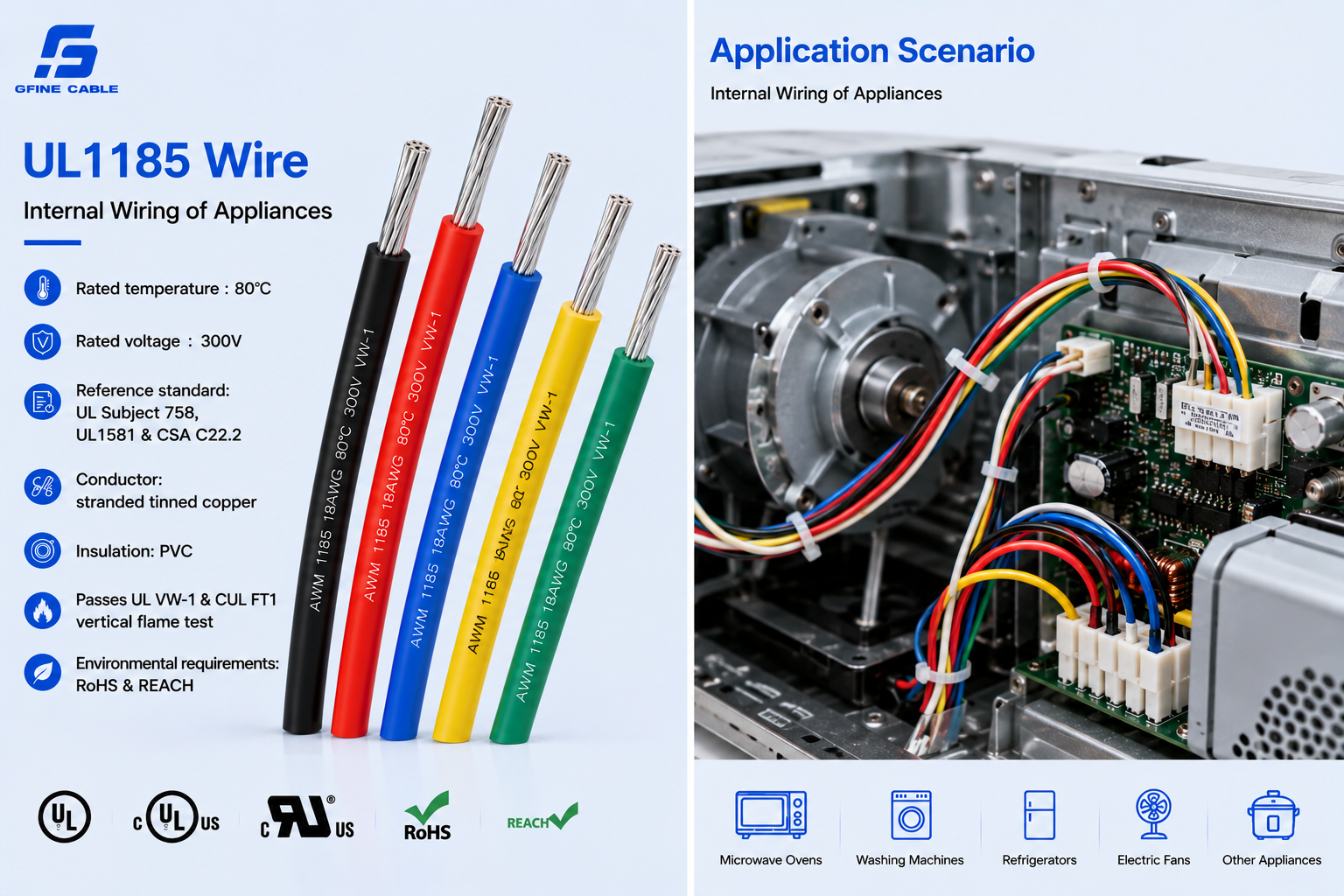

PRODUCT DESCRIPTION

Rated temperature ：80℃

Rated voltage ：300V

Reference standard：UL Subject 758, UL1581 & CSA C22.2

Conductor: stranded tinned copper

Insulation:PVC

Passes UL VW-1 & CUL FT1 vertical flame test

Environmental requirements: RoHS & REACH;

Internal Wiring of Appliances

PARAMETER

Conductor			Insulation	Sheath	Sheath	Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km
导体			绝缘	护套	护套
AWG	No./mm	Nom.Dia.	Min.Thick.	Min.Thick.	Average
线规	线数/线径	外径	最小厚度	最小厚度	参考外径
		mm	mm	mm	mm
16	26/0.254	1.50	0.38	0.38	3.70	14.6
18	41/0.16	1.18	0.38	0.38	3.40	23.2
20	26/0.16	0.94	0.38	0.38	3.20	36.7
22	17/0.16	0.76	0.38	0.38	3.00	59.4
24	11/0.16	0.61	0.38	0.38	2.80	94.2
