UL2547 Shielded Cable Manufacturer | Multi-Conductor Data & Signal UL Approved PVC Wire

UL2547 Shielded Multi-Conductor Cable PVC Insulated Data & Signal Transmission Wire

Short Description:

Technical Specifications

Parameter	Details
Standard Compliance	UL 758, UL 1581, RoHS/REACH Approved
Conductor Material	Stranded Tinned or Bare Copper (30 AWG - 20 AWG)
Shielding Type	Tinned Copper Spiral Shield (Excellent EMI protection)
Insulation / Jacket	Color-Coded PVC Insulation / High-Grade PVC Jacket
Rated Voltage/Temp	300 Volts AC / 80°C (176°F)
Flame Rating	VW-1, FT1 (Self-extinguishing)

Send email to us

Product Detail

Product Tags

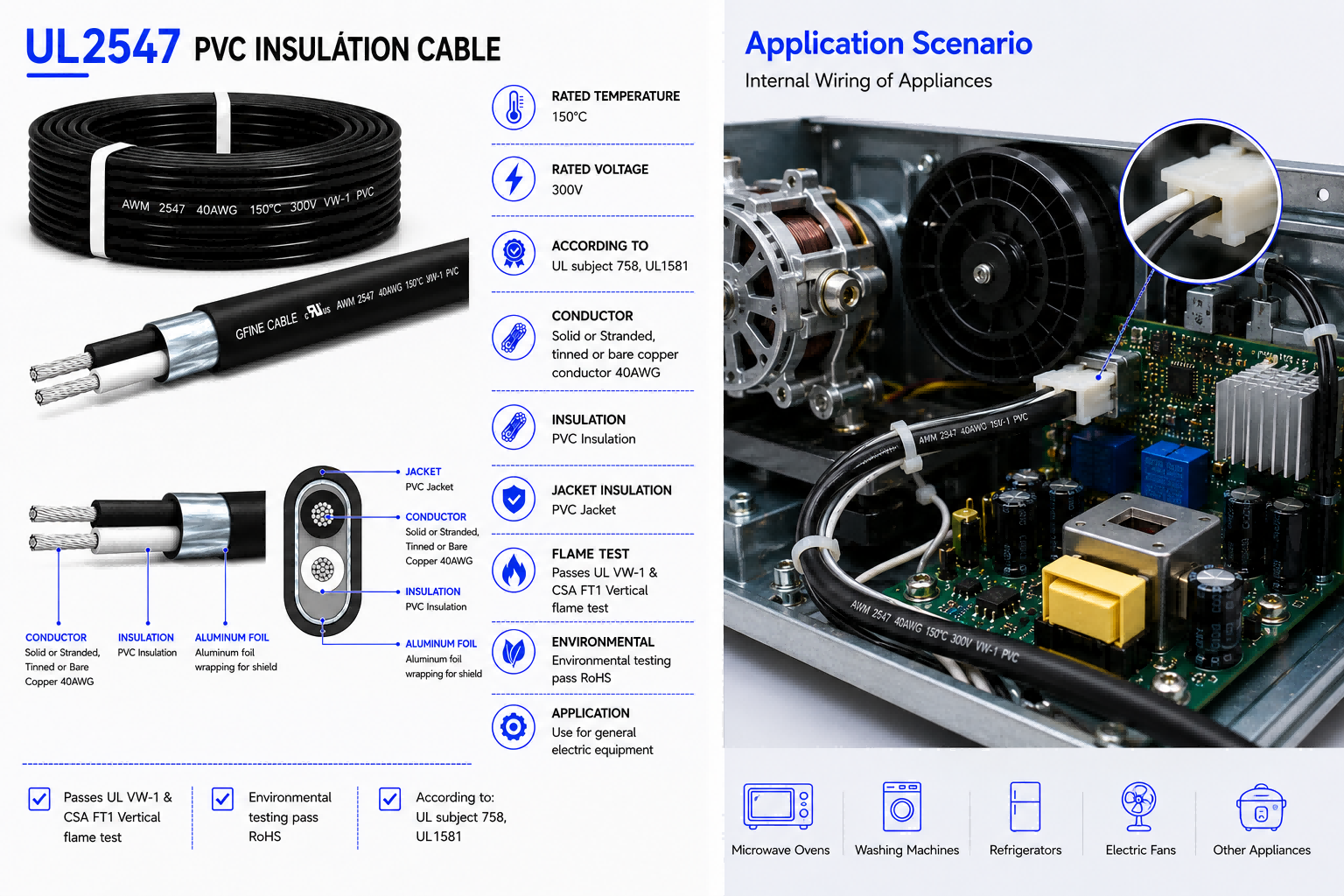

PRODUCT DESCRIPTION
1. Rated temperature:150ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 40AWG
5.PVC insulation，PVC Jacket insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Use for general electric equipment

PRODUCT PARAMETERS

导体 CONDUCTOR				绝缘 INSULATION		屏蔽 SHIELD	排流线 DRAIN	护套 JACKET		最大导体电阻
规格 AWG	构造 CONSTRUCTION(No./mm)	外径 DIA.(mm)	芯数 (No)	绝缘厚度 INSULATION THICKNESS (mm)	外径 O.D.(mm)	构造 CONSTRUCTION	构造 Construction (no/mm)	护套厚度 JACKET THICKNESS (mm)	外径 O.D.(mm)	MAX.COND. RESISTANCE (Ω/km,20℃,DC)
26	7/0.16	0.48	2	0.23	1	Al-mylar	7/0.16	0.76	4.5	150
			3		1	Al-mylar			4.6
			4		1	Al-mylar			4.9
			5		1	Al-mylar			5.2
24	7/0.20 11/0.16	0.61	2	0.23	1.1	Al-mylar	7/0.20	0.76	4.7	94.2
			3		1.1	Al-mylar			4.8
			4		1.1	Al-mylar			5.1
			5		1.1	Al-mylar			5.3
22	17/0.16	0.76	2	0.23	1.3	Al-mylar	17/0.16	0.76	4.9	59.4
			3		1.3	Al-mylar			5.1
			4		1.3	Al-mylar			5.4
			5		1.3	Al-mylar			5.8
20	21/0.178 26/0.16	0.94	2	0.23	1.5	Al-mylar	21/0.178	0.76	5.3	36.7
			3		1.5	Al-mylar			5.5
			4		1.5	Al-mylar			5.9
			5		1.5	Al-mylar			6.3
