UL2517 Shielded Multi-Conductor Cable 300V PVC Insulated Control & Signal Wire
UL2517 Shielded Multi-Conductor Cable 300V PVC Insulated Control & Signal Wire

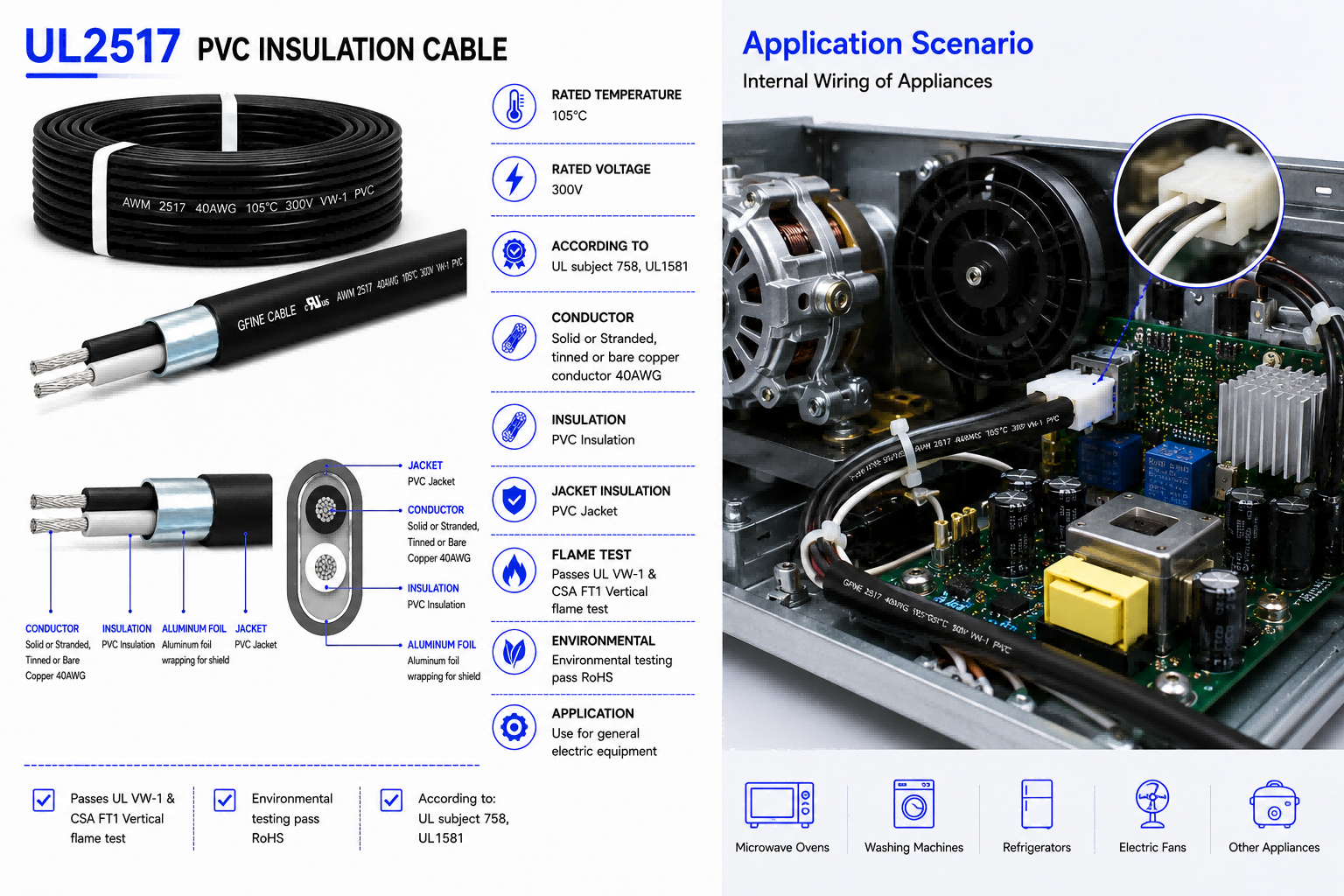

PRODUCT DESCRIPTION
1. Rated temperature:105ºC
2.Rated voltage:300V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 40AWG
5.PVC insulation，PVC Jacket insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Use for general electric equipment
PRODUCT PARAMETERS
| 导体 CONDUCTOR | 绝缘 INSULATION | 屏蔽 SHIELD | 护套 JACKET | 最大导体电阻 | |||||
| 规格 AWG | 构造 CONSTRUCTION(No./mm) | 外径 DIA.(mm) | 芯数 (No) | 绝缘厚度 INSULATION THICKNESS (mm) | 外径 O.D.(mm) | 构造 CONSTRUCTION | 护套厚度 JACKET THICKNESS (mm) | 外径 O.D.(mm) | MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
| 26 | 7/0.16 | 0.48 | 2 | 0.23 | 1 | Al-mylar | 0.76 | 4.5 | 150 |
| 3 | 1 | Al-mylar | 4.6 | ||||||
| 4 | 1 | Al-mylar | 4.9 | ||||||
| 5 | 1 | Al-mylar | 5.2 | ||||||
| 24 | 7/0.20 11/0.16 | 0.61 | 2 | 0.23 | 1.1 | Al-mylar | 0.76 | 4.7 | 94.2 |
| 3 | 1.1 | Al-mylar | 4.8 | ||||||
| 4 | 1.1 | Al-mylar | 5.1 | ||||||
| 5 | 1.1 | Al-mylar | 5.3 | ||||||
| 22 | 17/0.16 | 0.76 | 2 | 0.23 | 1.3 | Al-mylar | 0.76 | 4.9 | 59.4 |
| 3 | 1.3 | Al-mylar | 5.1 | ||||||
| 4 | 1.3 | Al-mylar | 5.4 | ||||||
| 5 | 1.3 | Al-mylar | 5.8 | ||||||
| 20 | 21/0.178 26/0.16 | 0.94 | 2 | 0.23 | 1.5 | Al-mylar | 0.76 | 5.3 | 36.7 |
| 3 | 1.5 | Al-mylar | 5.5 | ||||||
| 4 | 1.5 | Al-mylar | 5.9 | ||||||
| 5 | 1.5 | Al-mylar | 6.3 | ||||||
