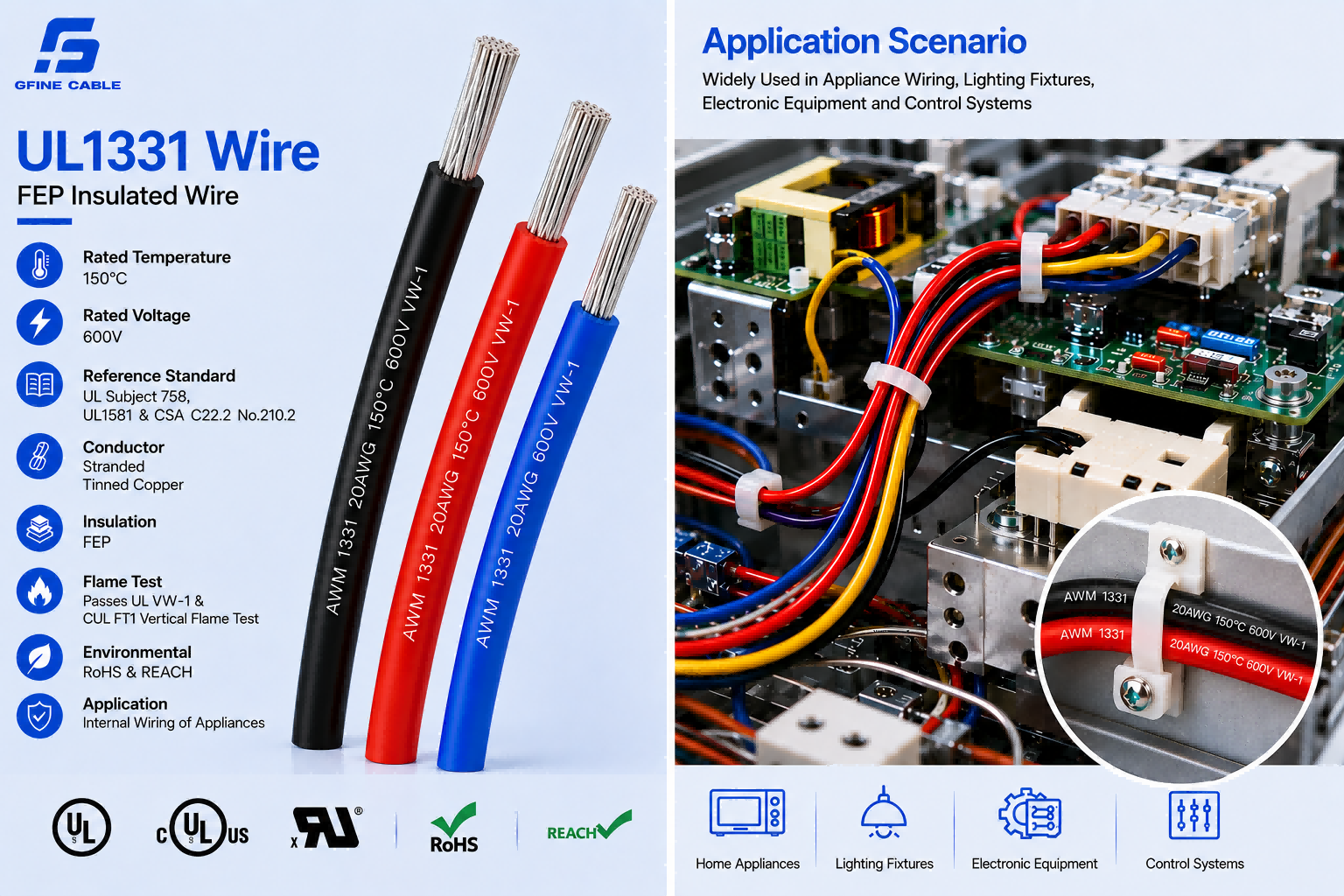

UL1331 FEP insulated wire

Short Description:

Product Detail

Product Tags

PRODUCT DESCRIPTION

Rated temperature：150℃
Rated voltage：600V
Reference standard：UL Subject 758, UL1581 & CSA C22.2 No.210.2
Conductor: stranded tinned copper
Insulation: FEP
Passes UL VW-1 & CUL FT1 vertical flame test
Environmental requirements: RoHS & REACH;
APPLICATION:Internal Wiring of Appliances

PARAMETER

Conductor 导体			Insulation 绝缘		Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km
Conductor 导体			Insulation 绝缘
AWG 线规	No./mm 线数/线径	Nom.Dia. 外径 mm	Nom.Thick. 平均厚度 mm	Average 参考外径 mm


14	19/0.37	1.88	0.51	2.90	8.96
16	19/0.30	1.50	0.51	2.52	14.6
18	19/0.23	1.18	0.51	2.17	23.2
20	19/0.19	0.96	0.51	1.98	36.7
22	19/0.15	0.76	0.51	1.78	59.4
24	19/0.12	0.60	0.51	1.62	94.2
