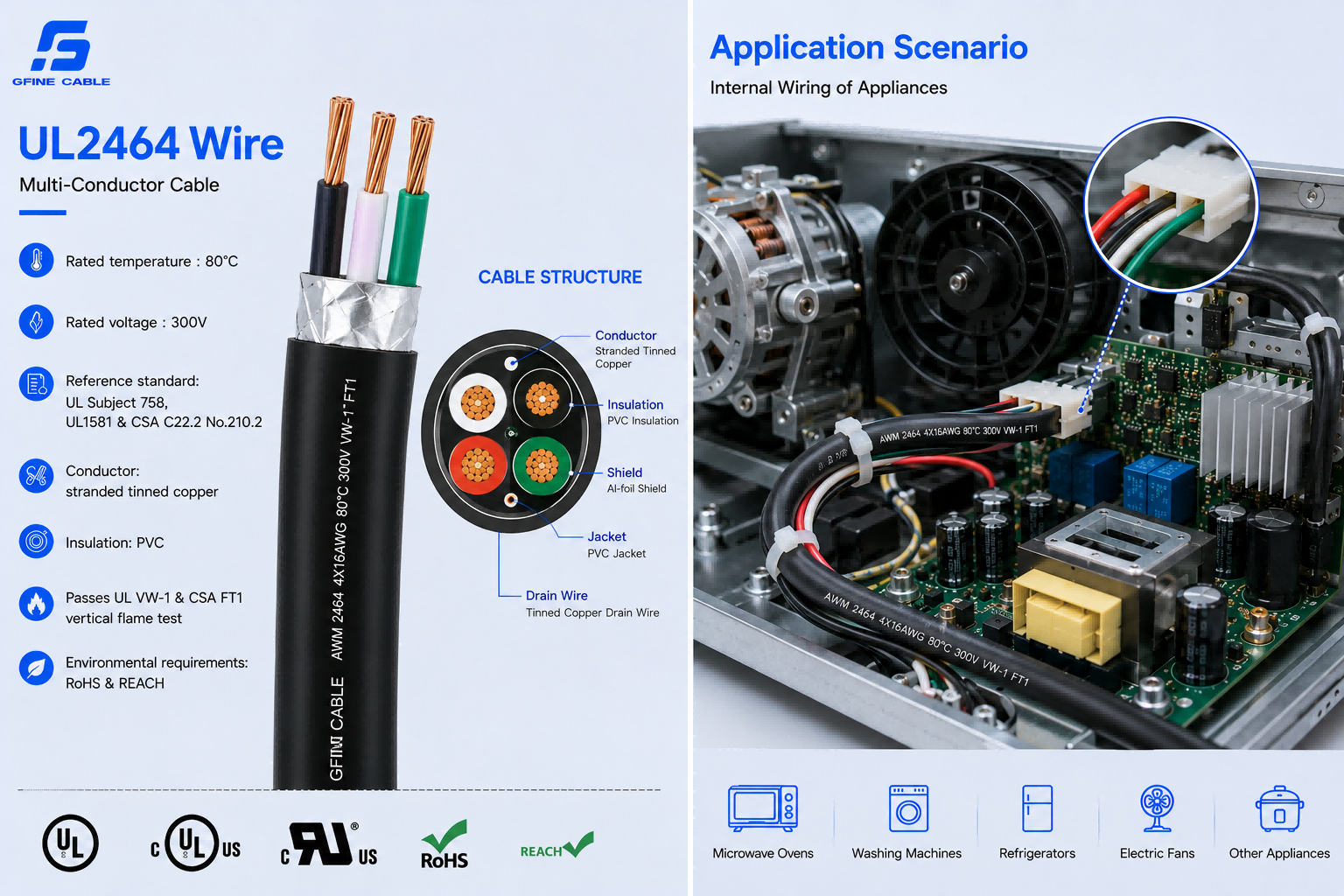

UL2464 HOOK UP WIRE

80ºC 300V PVC INSULATION AND JACKET WIRE.

Rated temperature:80ºC

Rated voltage:300V

According to:UL subject 758,UL1581

Solid or Stranded,tinned or bare copper conductor 32-16AWG

PVC insulation,PVC Jacket。

AL-foil, tinned copper or bare copper for shield

Uniform insulation thickness of wire to ensure easy stripping and cutting.

Passes UL VW-1 & CSA FT1 Vertical flame test

Environmental testing pass RoHS

Ground strap lead wire for the computer,internal wiring of electronic equipment

Product Detail

PRODUCT DESCRIPTION

1.Rated temperature:80ºC

2.Rated voltage:300V

3.According to:UL subject 758,UL1581

4.Solid or Stranded,tinned or bare copper conductor 32-16AWG

5.PVC insulation,PVC Jacket。

6.AL-foil, tinned copper or bare copper for shield

7.Uniform insulation thickness of wire to ensure easy stripping and cutting.

8.Passes UL VW-1 & CSA FT1 Vertical flame test

9.Environmental testing pass RoHS

10.Ground strap lead wire for the computer,internal wiring of electronic equipment

PRODUCT PARAMETERS

导体				绝缘		屏蔽	排流线	编织	护套		最大导体电阻MAX.COND. RESISTANCE (Ω/km,20℃,DC)
CONDUCTOR				INSULATION		SHIELD	DRAIN	BRAID	JACKET
规格AWG	构造CONSTR-UCTION(No./mm)	外径DIA. (mm)	芯数 (No)	绝缘厚度INSULATIONTHICKNESS (mm)	外径O.D. (mm)	构造CONSTRU-CTION	构造 Construction (no/mm)	构造 Construction (mm)	护套厚度JACKET THICKNESS(mm)	外径O.D. (mm)
26	7/0.16	0.48	2	0.23	1	Al-mylar	7/0.16	0.12	0.76	4.5	150
			3		1	Al-mylar		0.12		4.6
			4		1	Al-mylar		0.12		4.9
			5		1	Al-mylar		0.12		5.2
24	7/0.20 11/0.16	0.61	2	0.23	1.1	Al-mylar	7/0.20	0.12	0.76	4.7	94.2
			3		1.1	Al-mylar		0.12		4.8
			4		1.1	Al-mylar		0.12		5.1
			5		1.1	Al-mylar		0.12		5.3
22	17/0.16	0.76	2	0.23	1.3	Al-mylar	17/0.16	0.12	0.76	4.9	59.4
			3		1.3	Al-mylar		0.12		5.1
			4		1.3	Al-mylar		0.12		5.4
			5		1.3	Al-mylar		0.12		5.8
20	21/0.178 26/0.16	0.94	2	0.23	1.5	Al-mylar	21/0.178	0.12	0.76	5.3	36.7
			3		1.5	Al-mylar		0.12		5.5
			4		1.5	Al-mylar		0.12		5.9
			5		1.5	Al-mylar		0.12		6.3
