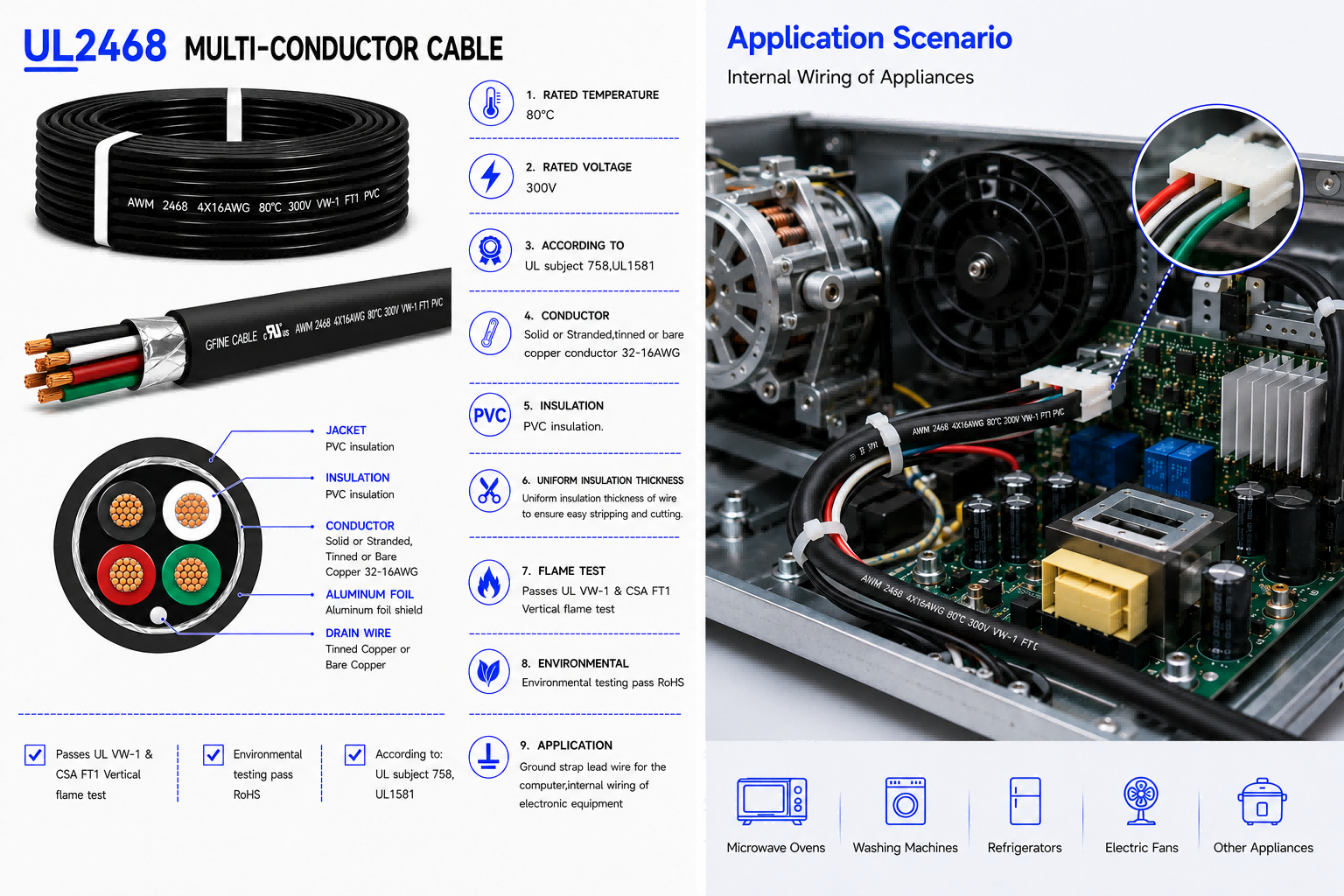

UL2468 FLAT RIBBON WIRE

Short Description:

80ºC 300V PVC INSULATION WIRE.

Rated temperature:80ºC

Rated voltage:300V

According to:UL subject 758,UL1581

Solid or Stranded,tinned or bare copper conductor 32-16AWG

PVC insulation.

Uniform insulation thickness of wire to ensure easy stripping and cutting.

Passes UL VW-1 & CSA FT1 Vertical flame test

Environmental testing pass RoHS

Ground strap lead wire for the computer,internal wiring of electronic equipment

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

1.Rated temperature:80ºC

2.Rated voltage:300V

3.According to:UL subject 758,UL1581

4.Solid or Stranded,tinned or bare copper conductor 32-16AWG

5.PVC insulation.

6.Uniform insulation thickness of wire to ensure easy stripping and cutting.

7.Passes UL VW-1 & CSA FT1 Vertical flame test

8.Environmental testing pass RoHS

9.Ground strap lead wire for the computer,internal wiring of electronic equipment

PRODUCT PARAMETERS

导体					绝缘		最大导体电阻MAX.COND. RESISTANCE (Ω/km,20℃,DC)
CONDUCTOR					INSULATION
规格	间距*	构造	外径	芯数	绝缘厚度	外径
AWG	PITCH*	CONSTR-	DIA.	(No.)	INSULATION	O.D.
	(mm)	UCTION	(mm)		THICKNESS	(mm)
		(No./mm)			(mm)
26	1.5	7/0.16	0.48	2	0.38	1.35×2.85	150
				3	0.38	1.35×4.35
				4	0.38	1.35×5.85
				5	0.38	1.35×7.35
				6	0.38	1.35×8.85
				7	0.38	1.35×10.35
				8	0.38	1.35×11.85
				9	0.38	1.40×13.40
				10	0.38	1.40×14.90
				11	0.38	1.40×16.40
				12	0.38	1.40×17.90
				13	0.38	1.40×19.40
				14	0.38	1.40×20.90
				15	0.38	1.40×22.40
	2	7/0.16	0.48	2	0.38	1.35×3.35
				3	0.38	1.35×5.35
				4	0.38	1.35×7.35
				5	0.38	1.35×9.35
				6	0.38	1.35×11.35
				7	0.38	1.35×13.35
				8	0.38	1.35×15.35
				9	0.38	1.40×17.40
				10	0.38	1.40×19.40
				11	0.38	1.40×21.40
	2.5	7/0.16	0.48	2	0.38	1.35×3.85
				3	0.38	1.35×6.35
				4	0.38	1.35×8.85
				5	0.38	1.35×11.35
				6	0.38	1.35×13.85
				7	0.38	1.35×16.35
				8	0.38	1.35×18.85
				9	0.38	1.40×21.40
				10	0.38	1.40×23.90
				11	0.38	1.40×26.40
24	1.6	11/0.16	0.61	2	0.38	1.45×3.05	94.2
				3	0.38	1.45×4.65
				4	0.38	1.45×6.25
				5	0.38	1.45×7.85
				6	0.38	1.45×9.45
				7	0.38	1.45×11.05
				8	0.38	1.45×12.65
				9	0.38	1.50×14.30
				10	0.38	1.50×15.90
				11	0.38	1.50×17.50
				12	0.38	1.50×19.10
				13	0.38	1.50×20.70
				14	0.38	1.50×22.30
	2	11/0.16	0.61	2	0.38	1.45×3.45
				3	0.38	1.45×5.45
				4	0.38	1.45×7.45
				5	0.38	1.45×9.45
				6	0.38	1.45×11.45
				7	0.38	1.45×13.45
				8	0.38	1.45×15.45
	2.5	11/0.16	0.61	2	0.38	1.45×3.95
				3	0.38	1.45×6.45
				4	0.38	1.45×8.95
				5	0.38	1.45×11.45
				6	0.38	1.45×13.95
				7	0.38	1.45×16.45
				8	0.38	1.45×18.95
				9	0.38	1.50×21.50
				10	0.38	1.50×24.00
				11	0.38	1.50×26.50
22	1.8	17/0.16	0.76	2	0.38	1.70×3.50	59.4
	1.7	17/0.16	0.76	3	0.38	1.60×5.00
				4	0.38	1.60×6.70
				5	0.38	1.60×8.40
				6	0.38	1.60×10.10
				7	0.38	1.60×11.80
				8	0.38	1.60×13.50
				9	0.38	1.60×15.20
20	1.9	21/0.178	0.94	2	0.38	1.80×3.70	36.7
20	1.9	21/0.178	0.94	3	0.38	1.80×5.60	36.7
18	2.1	16/0.254	1.2	2	0.38	2.10×4.30	23.2
2芯 3芯 4芯 5芯 6芯 7芯 8芯 9芯 10芯 11芯 12芯
— × - · │ + - — -× │- -+ —×
