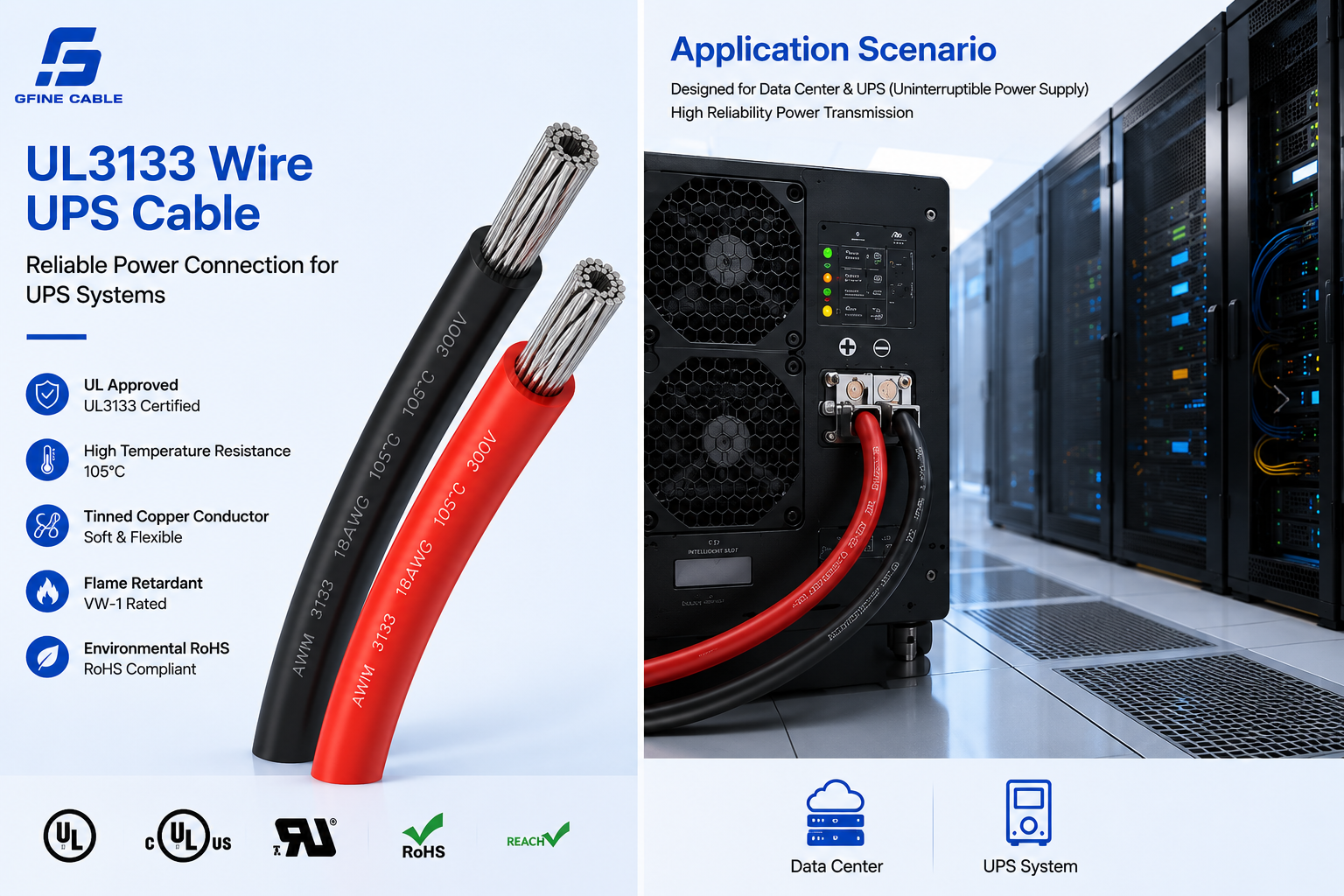

UL 3133 Silicone Rubber Flexible Cable | 3 & 4 Core UPS Power Solutions for Data Centers
UL 3133 Silicone Rubber Flexible Cable | 3 & 4 Core UPS Power Solutions for Data Centers
The conductors are made of single or stranded tin-plated copper wires of 26-12 AWG, and the insulation is made of silicone rubber.
Rated temperature: -60 to +150℃, rated voltage: 600V.
◆ Standards: UL758, UL1581 and CSA C22.2 No. 210.2, can pass UL VW-1 and CSA PT1 vertical flame retardant tests; comply with the EU RoHS environmental protection directive and have been tested and approved by SGS.
◆ Use standard thickness, easy to peel and cut. Tolerance ±0.22mm.
The colors are: white, red, black, blue, green, yellow, brown, semi-transparent, etc.
Application of UL3133 High-Temperature Silicone Rubber Wire:
It is widely applied in aviation, metallurgy, petroleum, lighting fixtures, electronic equipment, electronic instruments, measuring instruments, household appliances, transformers and motor lead wires.
| TYPE | Gauge(AWG) | Conductor | Conductor outer diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond. resistance（Ω/km ,20ºC） | Electricity(A) | Weight(kg) | Packing(m/roll) |
| 30 | 7 | 0.10 | 0.300 | 0.69 | 1.680 | 149 | 1.5 | 3.7 | 2000/610 |
| 28 | 7 | 0.12 | 0.360 | 0.69 | 1.740 | 149 | 2 | 4.2 | 2000/610 |
| 26 | 7 | 0.15 | 0.450 | 0.69 | 1.830 | 149 | 3 | 4.9 | 2000/610 |
| 24 | 12 | 0.15 | 0.590 | 0.69 | 1.970 | 93.3 | 4.0 | 6.2 | 2000/610 |
| 22 | 19 | 0.15 | 0.750 | 0.69 | 2.130 | 55.0 | 6.0 | 7.9 | 1000/305 |
| 20 | 28 | 0.15 | 0.910 | 0.69 | 2.290 | 34.6 | 9.0 | 9.9 | 1000/305 |
| 18 | 26 | 0.20 | 1.170 | 0.69 | 2.550 | 21.8 | 13 | 13.8 | 1000/305 |
| 16 | 42 | 0.20 | 1.490 | 0.69 | 2.870 | 13.7 | 18 | 19.6 | 1000/305 |
Write your message here and send it to us
-
18Gbps 4K 60Hz HDMI 2.0 Cable
-
JG Silicone Rubber Cable High Temperature Flexible Silicone Insulated Electrical Wire
-

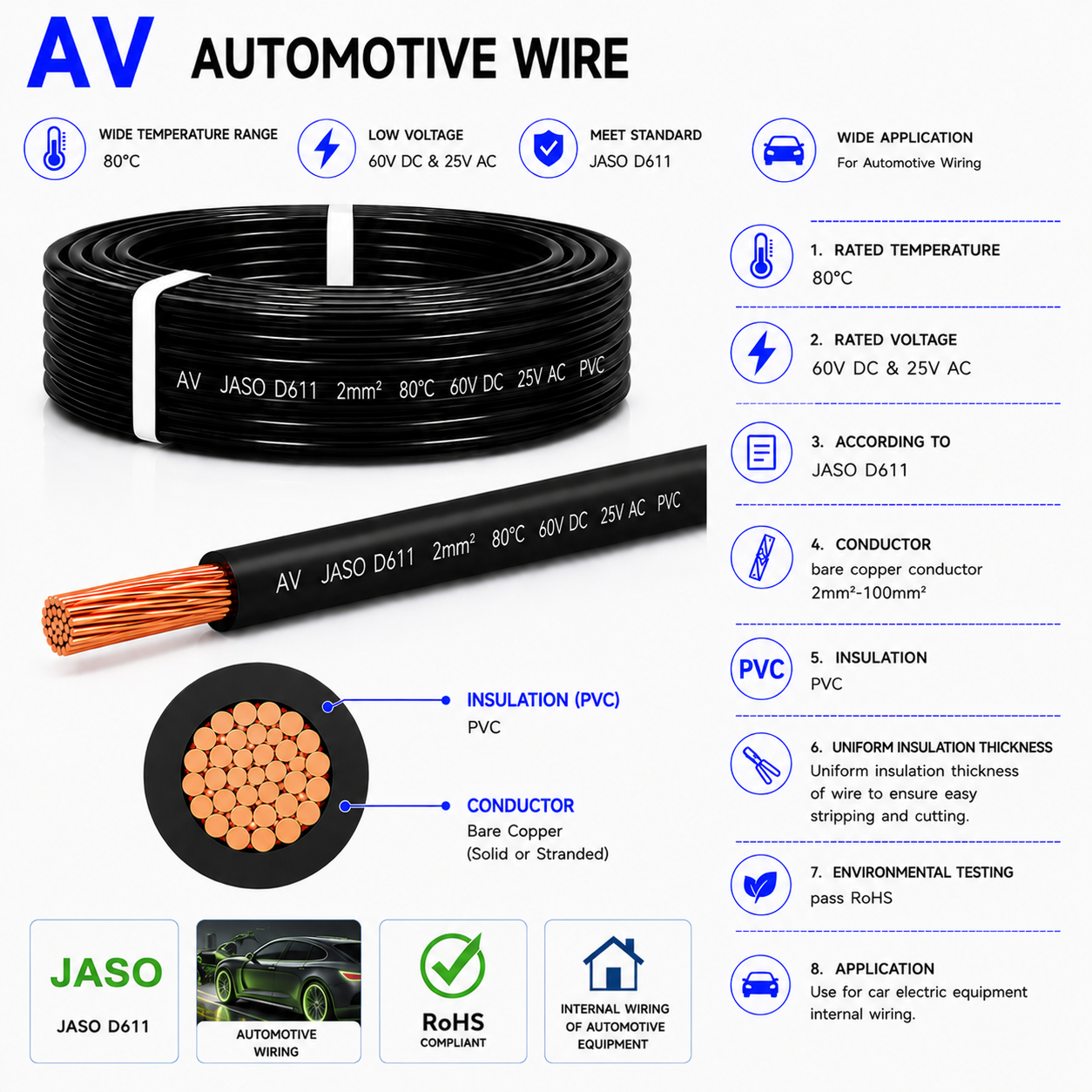

AV Automotive Wire Low Voltage PVC Insulated Car Wiring Harness Electrical Cable
-
