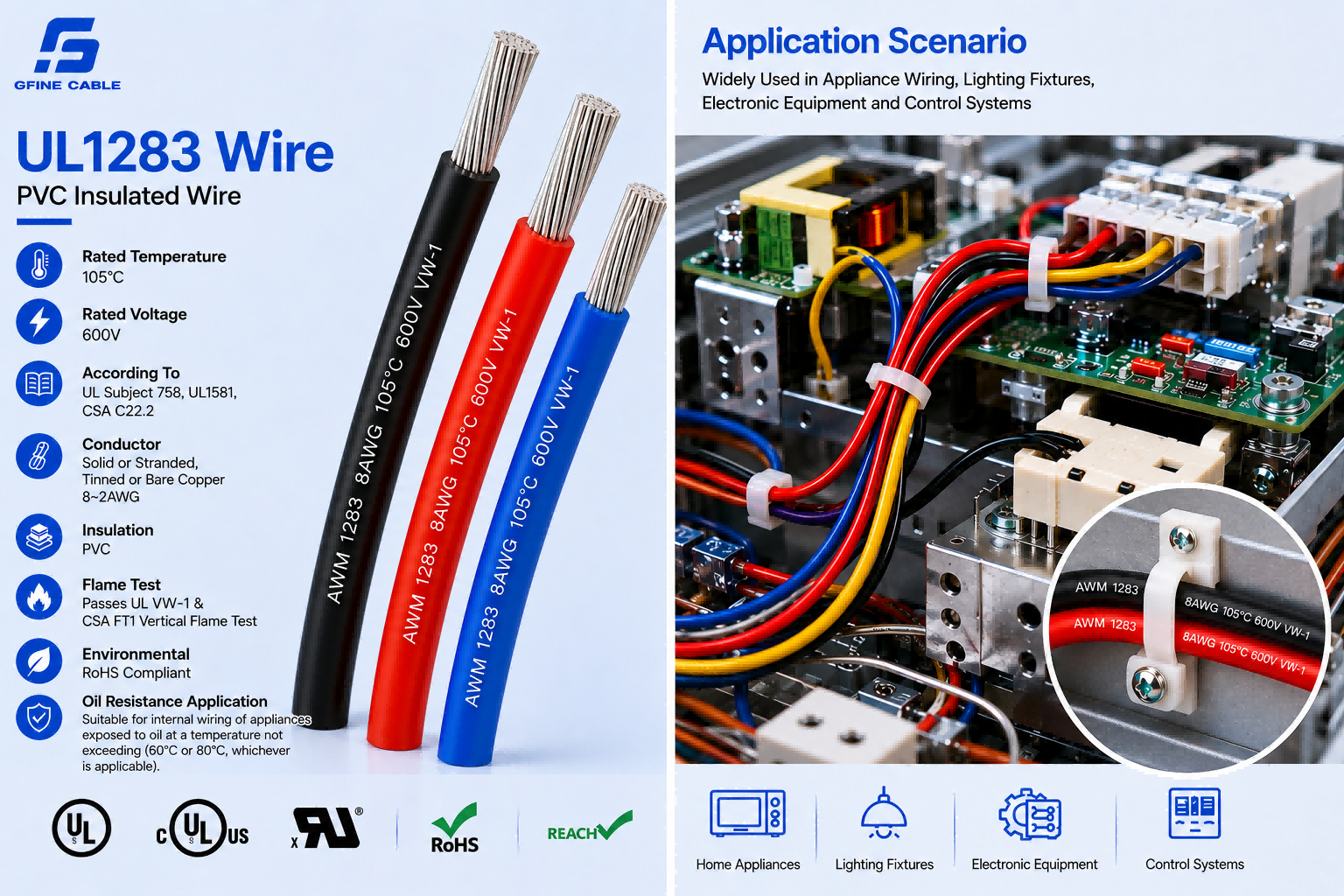

UL1283 HOOK UP WIRE
UL1283 HOOK UP WIRE
PRODUCT DESCRIPTION
1. Rated temperature:105ºC
2.Rated voltage:600V
3.According to:UL subject 758,UL1581,CSA C22.2
4.Solid or Stranded,tinned or bare copper conductor 8~2AWG
5.PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable)
PRODUCT PARAMETERS
| UL 型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准长度 Standard pup-up | |
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter | Insulation thickness | Wire O.D | Max Cond. resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL1283 | 8 | 164/0.254 | 3.80 | 1.52 | 7.5 | 2.23 | 305 | 100 |
| 6 | 260/0.254 | 4.80 | 8.5 | 1.403 | ||||
| 4 | 412/0.254 | 6.00 | 9.8 | 0.882 | ||||
| 2 | 665/0.254 | 7.70 | 11.6 | 0.5548 | / | REEL | ||
