UL1028 Wire | 600V 105°C PVC Hook-Up & Internal Wiring Cable

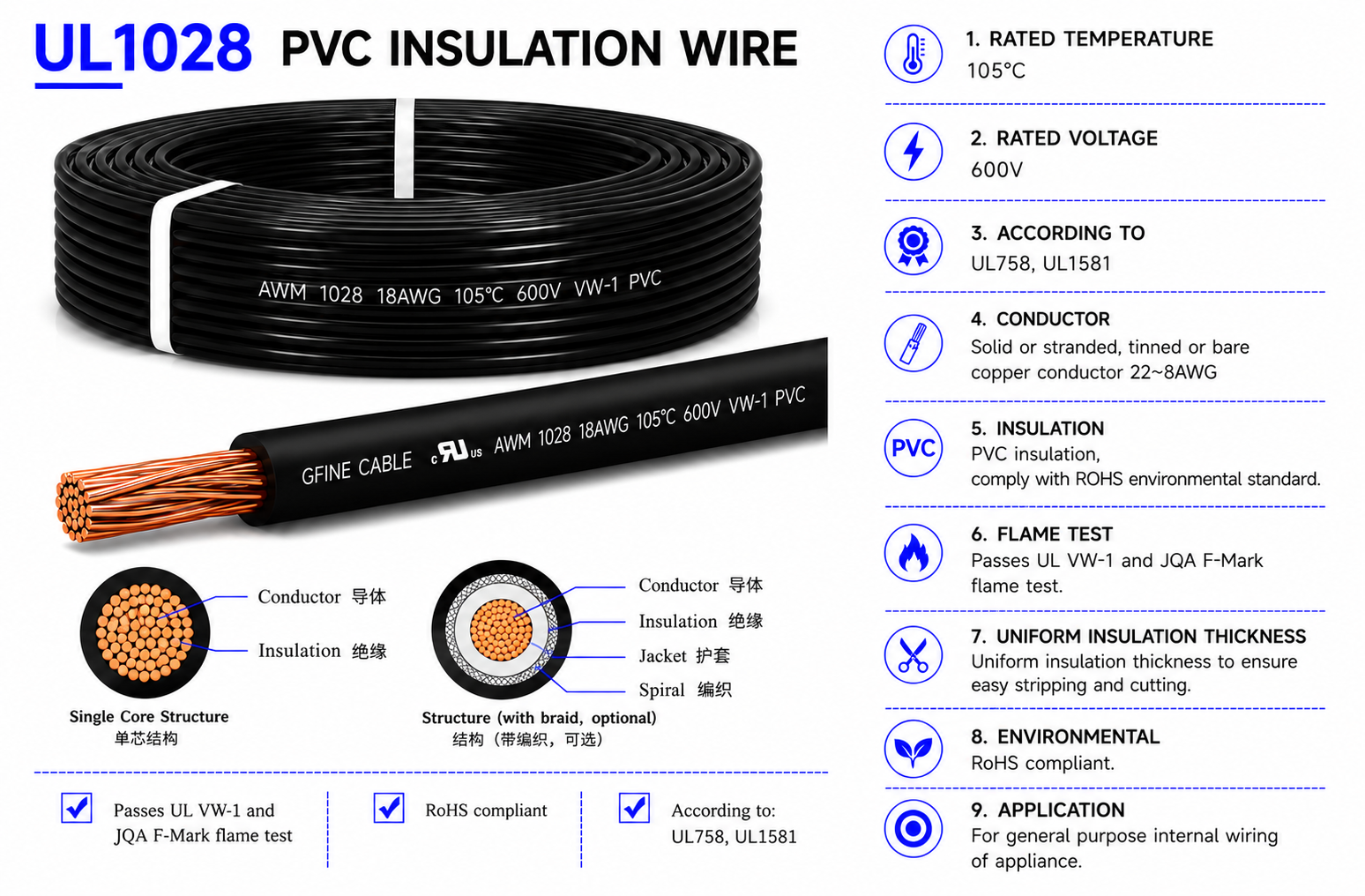

UL1028 Wire 600V 105°C PVC Insulated Hook-Up Wire

Short Description:

Rated temperature：105℃
Rated voltage：600V
Reference standard：UL758,UL1581
Solid or stranded, tinned or bare copper conductor 22~8AWG
PVC insulation, comply with ROHS environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
For general purpose internal wiring of appliance

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION
Rated temperature：105℃
Rated voltage：600V
Reference standard：UL758,UL1581
Solid or stranded, tinned or bare copper conductor 22~8AWG
PVC insulation, comply with ROHS environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
For general purpose internal wiring of appliance

导体 CONDUCTOR			绝缘 INSULATION		导体电阻MAX.COND.RESISTANCE （Ω/km,20℃,DC）	耐压强度DIELECTRIC STRENGTH （VAC，1min）


规格	构造	外径	厚度	外径
AWG	CONSTRUCTION	DIA.	THICKNESS	O.D.
	(No./mm)	(mm)	（mm）	(mm)
22	17/0.16	0.76	1.17	3.1	59.4	2,000
22	7/0.254 OS-1*	0.76	1.17	3.1	59.4	2,000
20	21/0.178	0.94	1.18	3.3	36.7	2,000
20	7/0.32OS-1*	0.96	1.17	3.3	36.7	2,000
18	16/0.254	1.17	1.22	3.6	23.2	2,000
	34/0.178	1.2	1.2	3.6
	7/0.404OS-1*	1.2	1.2	3.6
16	26/0.254	1.49	1.21	3.9	14.6	2,000
14	41/0.254	1.88	1.21	4.3	8.96	2,000
12	65/0.254	2.36	1.22	4.8	5.64	2,000
10	7/15/0.254	3.4	1.2	5.8	3.54	2,000
8	7/24/0.254	3.99	1.41	6.8	2.23	2,000
