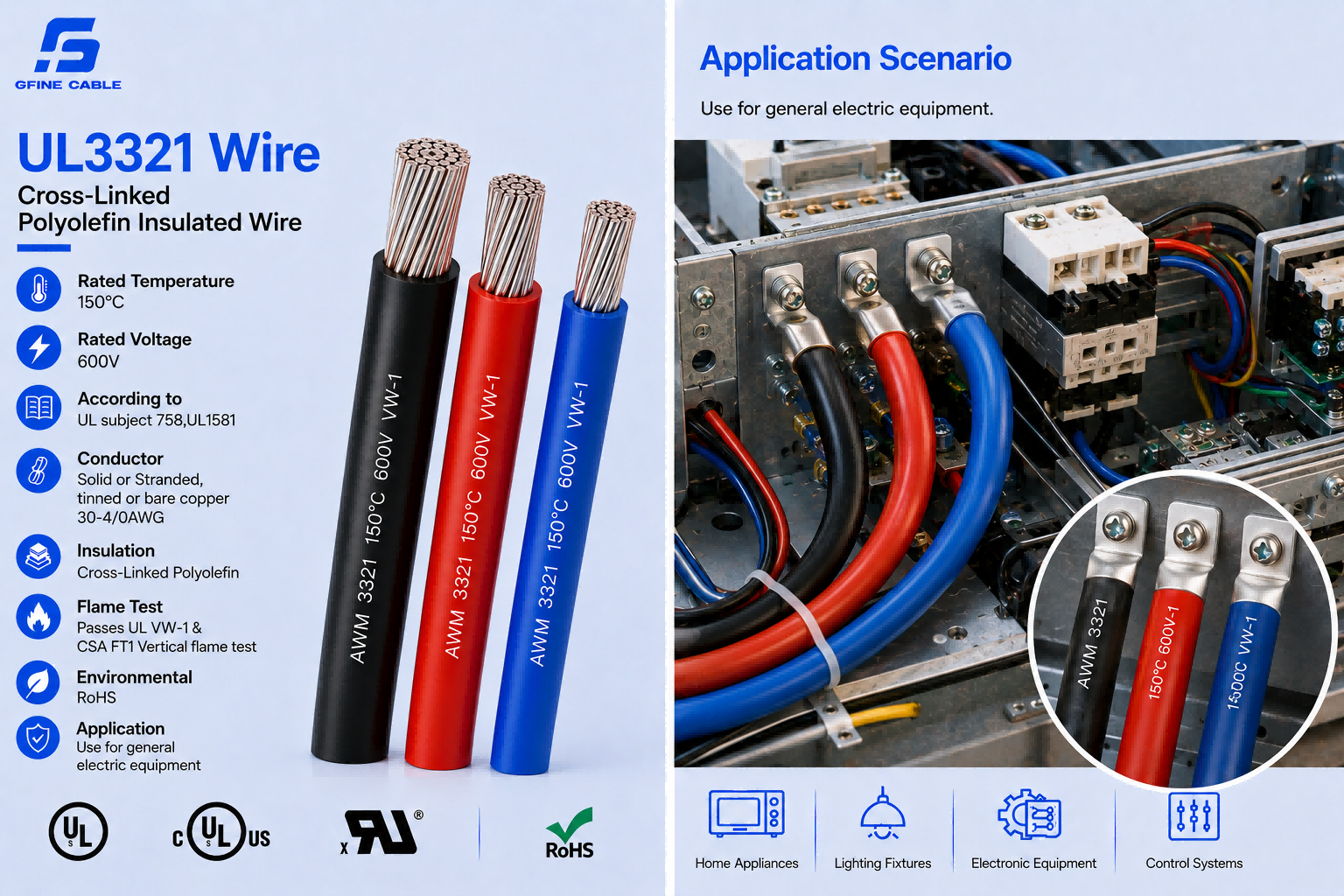

UL3321HOOK UP WIRE

Previous: UL3289 HOOK UP WIRE
Next: UL3173,HOOK UP WIRE

Short Description:

150ºC 600V XLPE INSULATION WIRE

Rated temperature:150ºC
Rated voltage:600V
According to:UL subject 758,UL1581
Solid or Stranded,tinned or bare copper conductor 30-4/0AWG
Cross-Linked Polyolefin insulation.
Passes UL VW-1 & CSA FT1 Vertical flame test
Environmental testing pass RoHS
Use for general electric equipment

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION
1. Rated temperature:150ºC
2.Rated voltage:600V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-4/0AWG
5.Cross-Linked Polyolefin insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Use for general electric equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准包装长度 Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor O.D(mm)	Insulation thickness (mm)	Wire O.D(mm)	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL3321	26	7/0.16	0.48	0.76	2.10	150	2000	610
	24	11/0.16	0.61		2.20	94.2
	22	17/0.16	0.76		2.40	59.4
	20	21/0.178	0.94		2.60	36.7
	18	16/0.254	1.17		2.80	23.2
	16	26/0.254	1.49		3.10	14.6	1000	305
	14	41/0.254	1.87		3.50	8.96
	12	65/0.254	2.36		4.00	5.64
	10	105/0.254	3.00		4.70	3.546
	8	164/0.254	3.80	1.14	6.50	2.23	492	150
	6	260/0.254	4.80		7.70	1.403	492	150
	4	412/0.254	6.00		9.10	0.882	328	100
	2	665/0.254	7.70	1.52	11.50	0.5548	/	REEL
	1	820/0.254	8.50	2.03	13.90	0.4398
	1/0	1035/0.254	9.60		14.80	0.3487
	2/0	1311/0.254	10.80		16.00	0.2766
	3/0	1650/0.254	12.20		17.50	0.2194
	4/0	2090/0.254	13.80		19.50	0.1722
