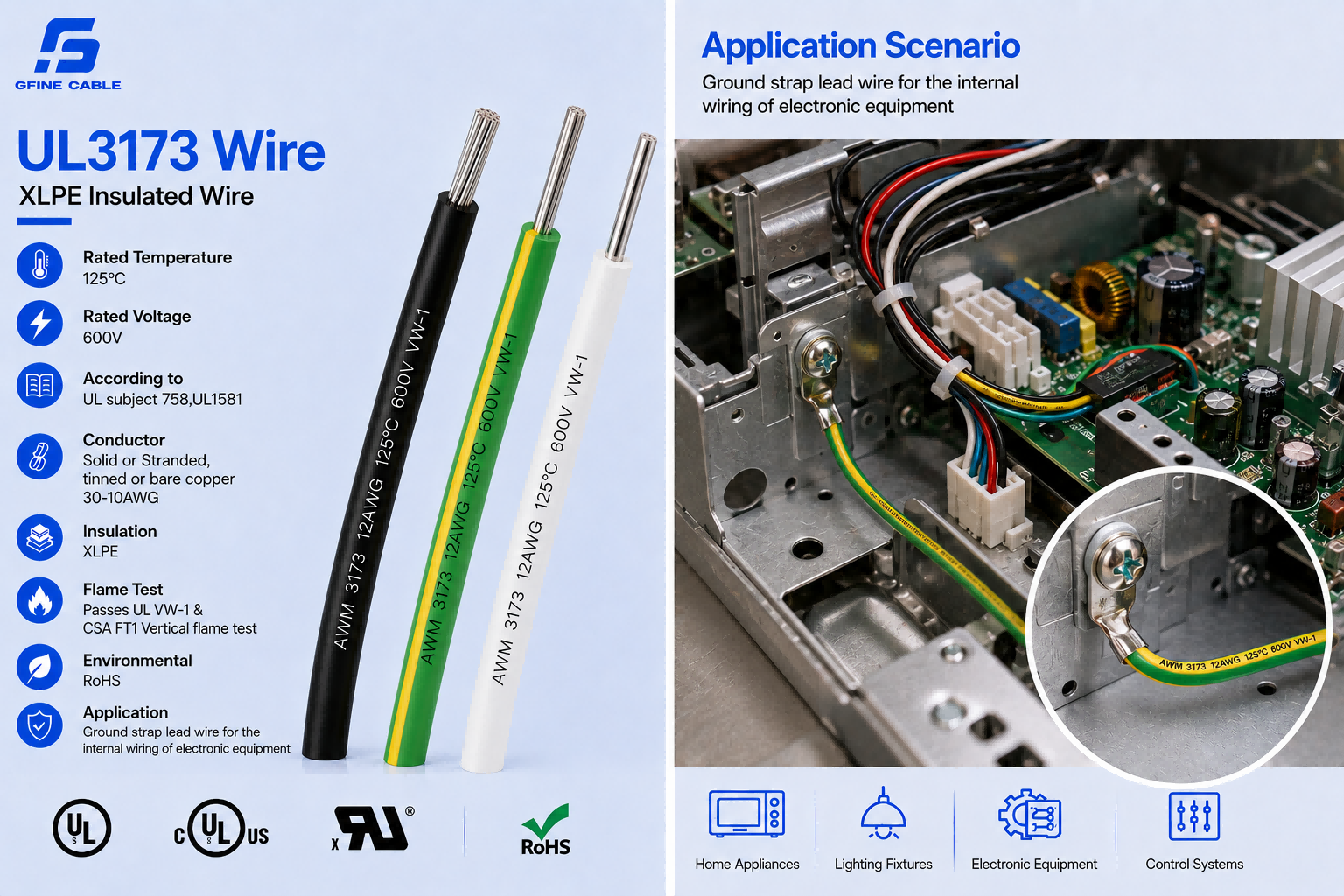

UL3173,HOOK UP WIRE

Previous: UL3321HOOK UP WIRE
Next: UL3386 HOOK UP WIRE

Short Description:

125ºC 600V XLPE INSULATION WIRE

Rated temperature:125ºC
Rated voltage:600V
According to:UL subject 758,UL1581
Solid or Stranded,tinned or bare copper conductor 30-10AWG
XLPE insulation.
Passes UL VW-1 & CSA FT1 Vertical flame test
Environmental testing pass RoHS
Ground strap lead wire for the internal wiring of electronic equipment

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION
1. Rated temperature:125ºC
2.Rated voltage:600V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-10AWG
5.XLPE insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Ground strap lead wire for the internal wiring of electronic equipment

PRODUCT PARAMETERS

UL 型号	导体线规(AWG)	导体结构 Conductor	导体外径(mm)	绝缘厚度(mm)	电缆外径(mm)	最大导体电阻（Ω/km）	标准包装长度 Standard pup-up
UL TYPE	Gauge(AWG)	Construction(no/mm)	Conductor outer diameter(mm)	Insulation thickness (mm)	Wire O.D(mm)	Max Cond. resistance（Ω/km ,20ºC）	FT/ROLL	METER/ROLL
UL3173	26	7/0.16	0.48	0.76	2.10	150	2000	610
	24	11/0.16	0.61		2.20	94.2
	22	17/0.16	0.76		2.40	59.4
	20	21/0.178	0.94		2.60	36.7
	18	16/0.254	1.17		2.80	23.2
	16	26/0.254	1.49		3.10	14.6	1000	305
	14	41/0.254	1.87		3.50	8.96
	12	65/0.254	2.36		4.00	5.64
	10	105/0.254	3.00		4.70	3.546
